Product Details:
|
| Product Name: | Leaf Filter | HS Code: | 8421299090 |
|---|---|---|---|
| Precision: | 10um | Designed Temperature: | 100 Degrees |
| Material: | Carbon Steel | Slag Discharge: | Automatic |
| Method Of Cake Discharge: | Pneumatic Butterfly Valve Or Cylinder Opening | Capacity: | 20t/h |
| Cylinder Volume: | 2770L | Voltage: | Customized |
| High Light: | Vertical Leaf Filter,Edible Oil leaf Filter,leaf Filter system Vertical |
||

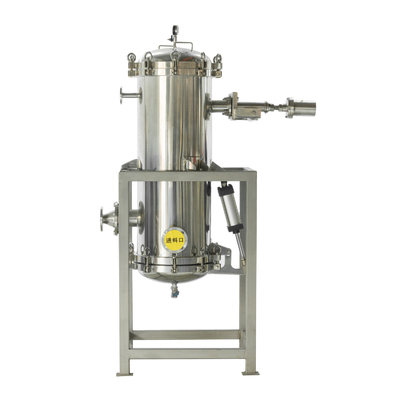

Vertical Hydraulic Palm Peanut Mustard Coconut Leaf Cooking Edible Oil Filter
1.Reasonable structure,covering less area.
2.Efficient filtration,higher precision,lower loss of material (no need the filter cloth,filter paper or paper element,but only consume the filter aid)
3.Discharging the slag by automatic vibrating.Easy operation and reduce the labor intensity.
4.The mesh is made of stainless steel.No need to be changed.The production can be continuous.
| Filter cake volume(L) | Processing power(t/h) | Workpressure(Mpa) | Filtering cylinder volume(L) | I/O Connection | Discharging outlet | Cylinder diameter(mm) | Cylinder height(mm) | Filter spacing(mm) | Weight(Kg) | |||
| Grease | Resin | Drinks | ||||||||||
| YWBL-2 | 30 | 0.4-0.6 | 1-1.5 | 1-2 | 0.1-0.4 | 120 | DN25 | DN100 | 400*3 | 1280 | 50 | 150 |
| YWBL-4 | 60 | 0.8-1.2 | 2-3 | 2-4 | 250 | DN40 | DN125 | 500*3 | 1520 | 50 | 180 | |
| YWBL-7 | 105 | 1.4-2 | 3-5 | 4-8 | 420 | DN40 | DN150 | 600*3 | 1920 | 50 | 326 | |
| YWBL-10 | 150 | 2-3 | 5-8 | 5-10 | 890 | DN50 | DN200 | 800*4 | 2120 | 70 | 474 | |
| YWBL-12 | 240 | 2.4-3.6 | 6-9 | 6-12 | 1190 | DN50 | DN250 | 900*4 | 2220 | 70 | 554 | |
| YWBL-15 | 300 | 3-5 | 7-12 | 8-16 | 1580 | DN50 | DN250 | 1000*5 | 2370 | 70 | 815 | |
| YWBL-20 | 400 | 4-6 | 10-15 | 10-20 | 1770 | DN65 | DN250 | 1000*5 | 2670 | 70 | 910 | |
| YWBL-25 | 500 | 5-7 | 12-18 | 12-24 | 2200 | DN65 | DN300 | 1100*6 | 2740 | 70 | 1024 | |
| YWBL-30 | 600 | 6-9 | 14-22 | 15-30 | 2770 | DN65 | DN300 | 1200*6 | 2870 | 70 | 1165 | |
| YWBL-36 | 720 | 7-10 | 16-24 | 18-36 | 2870 | DN80 | DN300 | 1200*6 | 2970 | 70 | 1202 | |
| YWBL-40 | 800 | 8-12 | 20-30 | 20-40 | 3500 | DN80 | DN350 | 1300*6 | 3070 | 70 | 1342 | |
| YWBL-45 | 900 | 9-13 | 22-32 | 22-44 | 3630 | DN100 | DN350 | 1300*6 | 3270 | 70 | 1422 | |
| YWBL-52 | 1040 | 10-15 | 25-40 | 26-52 | 4380 | DN100 | DN350 | 1400*6 | 3370 | 75 | 1900 | |
| YWBL-60 | 1200 | 12-18 | 38-42 | 30-60 | 5100 | DN100 | DN400 | 1500*8 | 3530 | 75 | 2114 | |
| YWBL-70 | 1400 | 14-20 | 35-50 | 35-70 | 6940 | DN125 | DN400 | 1600*8 | 4220 | 80 | 2662 | |
| YWBL-80 | 1600 | 16-24 | 40-60 | 40-80 | 8300 | DN125 | DN400 | 1800*8 | 4220 | 80 | 3882 | |
