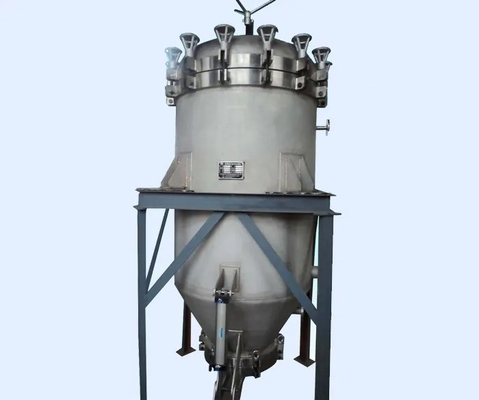

Industrial Pressure Leaf Filter Stainless Steel Closed Filter Screen Plate Filter

Industrial Pressure Leaf Filter Stainless Steel Closed Filter Screen Plate Filter
Industrial Pressure Leaf Filter Stainless Steel Closed Filter Screen Plate Filter

Large Image :  Industrial Pressure Leaf Filter Stainless Steel Closed Filter Screen Plate Filter

Product Details:
Place of Origin: China
Brand Name: Yuwei
Certification: CE,ISO
Model Number: YWBL
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD+3000-40000+set
Packaging Details: wooden case ,put in container
Delivery Time: 15 days
Payment Terms: T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability: 500+set+per month

Industrial Pressure Leaf Filter Stainless Steel Closed Filter Screen Plate Filter

Description
Product Name: Leaf Filter HS Code: 8421299090
Precision: 10um Designed Temperature: 100 Degrees
Material: Carbon Steel Slag Discharge: Automatic
Method Of Cake Discharge: Pneumatic Butterfly Valve Or Cylinder Opening Capacity: 20t/h
Cylinder Volume: 2770L Voltage: Customized
High Light:

industrial pressure leaf filter

,

pressure leaf filter Stainless Steel

,

industrial leaf filter

Manufacturers Sell Stainless Steel Closed Filter Screen Plate



Yuwei Industrial BVF series vane filter adopts the vertical design of vibrating slag discharge, and integrates multiple filter plates inside a single machine. When the difference reaches the set value, after emptying the liquid, the vibrating slag discharger vibrates the filter cake on the filter screen to regenerate the filter screen.
Another high-efficiency, energy-saving, closed-operation precision clarification filter product developed by Bolindustry. The equipment has a unique structure design, small footprint, good filtration effect, high filtrate transparency, good fineness, no material loss, and no consumables such as filter paper, filter cloth or filter element, so the operation and maintenance cost is extremely low. The equipment is easy to operate, maintain and clean.

The BVF self-cleaning filter is very suitable for the filtration and separation processes of decolorized oil filtration, clarification filtration, crystals, etc. in the production of oil, chemical, pharmaceutical and other industries. Difficult to filter, difficult to discharge slag and other problems. And it is suitable for hydrogenated oil catalyst filtration, chemical plasticizer filtration, etc. It is also used in some solid-liquid separation filtration processes such as beverages, alcohol, and medicine.







  Filter cake volume(L) Processing power(t/h) Workpressure(Mpa) Filtering cylinder volume(L) I/O Connection Discharging outlet Cylinder diameter(mm) Cylinder height(mm) Filter spacing(mm) Weight(Kg)
Grease Resin Drinks
YWBL-2 30 0.4-0.6 1-1.5 1-2 0.1-0.4 120 DN25 DN100 400*3 1280 50 150
YWBL-4 60 0.8-1.2 2-3 2-4 250 DN40 DN125 500*3 1520 50 180
YWBL-7 105 1.4-2 3-5 4-8 420 DN40 DN150 600*3 1920 50 326
YWBL-10 150 2-3 5-8 5-10 890 DN50 DN200 800*4 2120 70 474
YWBL-12 240 2.4-3.6 6-9 6-12 1190 DN50 DN250 900*4 2220 70 554
YWBL-15 300 3-5 7-12 8-16 1580 DN50 DN250 1000*5 2370 70 815
YWBL-20 400 4-6 10-15 10-20 1770 DN65 DN250 1000*5 2670 70 910
YWBL-25 500 5-7 12-18 12-24 2200 DN65 DN300 1100*6 2740 70 1024
YWBL-30 600 6-9 14-22 15-30 2770 DN65 DN300 1200*6 2870 70 1165
YWBL-36 720 7-10 16-24 18-36 2870 DN80 DN300 1200*6 2970 70 1202
YWBL-40 800 8-12 20-30 20-40 3500 DN80 DN350 1300*6 3070 70 1342
YWBL-45 900 9-13 22-32 22-44 3630 DN100 DN350 1300*6 3270 70 1422
YWBL-52 1040 10-15 25-40 26-52 4380 DN100 DN350 1400*6 3370 75 1900
YWBL-60 1200 12-18 38-42 30-60 5100 DN100 DN400 1500*8 3530 75 2114
YWBL-70 1400 14-20 35-50 35-70 6940 DN125 DN400 1600*8 4220 80 2662
YWBL-80 1600 16-24 40-60 40-80 8300 DN125 DN400 1800*8 4220 80 3882

Industrial Pressure Leaf Filter Stainless Steel Closed Filter Screen Plate Filter 0
