Product Details:
|
| Product Name: | Leaf Filter | HS Code: | 8421299090 |
|---|---|---|---|
| Precision: | 6um | Designed Temperature: | 90 Degrees |
| Material: | Carbon Steel | Slag Discharge: | Automatic |
| Method Of Cake Discharge: | Pneumatic Butterfly Valve Or Cylinder Opening | Capacity: | 9t/h |
| Cylinder Volume: | 890L | Voltage: | Customized |
| High Light: | vertical metal leaf filter,metal Vertical pressure Leaf Filter,vertical pressure filter |
||

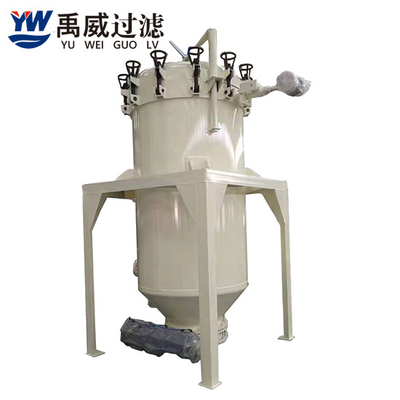

Auto Vertical Self-Cleaning Vibration Slag Removal Leaf Filter
Leaf filter is an efficient, energy-saving, precise clarification and filtration equipment closed operation, which is widely used in chemical, petroleum, bio-diesel, oil, paint, food, pharmaceutical and other industries. The unique design of the product structure, small size, high filtration efficiency, transparency and fineness filtrate, no material loss, do not consume paper, cloth or paper core, while consuming only a small amount of aid, and therefore very low filtration costs, equipment operation, maintenance, easy to clean.
Our strong technical force, reliable production process and improve the detection means, our engineering staff will be happy to serve you, to provide you with the most suitable for your plant filtration systems used with domestic or foreign technology can support, can Complete standalone unit or supply, service door assist debugging, reasonable price.
| Filter cake volume(L) | Processing power(t/h) | Workpressure(Mpa) | Filtering cylinder volume(L) | I/O Connection | Discharging outlet | Cylinder diameter(mm) | Cylinder height(mm) | Filter spacing(mm) | Weight(Kg) | |||
| Grease | Resin | Drinks | ||||||||||
| YWBL-2 | 30 | 0.4-0.6 | 1-1.5 | 1-2 | 0.1-0.4 | 120 | DN25 | DN100 | 400*3 | 1280 | 50 | 150 |
| YWBL-4 | 60 | 0.8-1.2 | 2-3 | 2-4 | 250 | DN40 | DN125 | 500*3 | 1520 | 50 | 180 | |
| YWBL-7 | 105 | 1.4-2 | 3-5 | 4-8 | 420 | DN40 | DN150 | 600*3 | 1920 | 50 | 326 | |
| YWBL-10 | 150 | 2-3 | 5-8 | 5-10 | 890 | DN50 | DN200 | 800*4 | 2120 | 70 | 474 | |
| YWBL-12 | 240 | 2.4-3.6 | 6-9 | 6-12 | 1190 | DN50 | DN250 | 900*4 | 2220 | 70 | 554 | |
| YWBL-15 | 300 | 3-5 | 7-12 | 8-16 | 1580 | DN50 | DN250 | 1000*5 | 2370 | 70 | 815 | |
| YWBL-20 | 400 | 4-6 | 10-15 | 10-20 | 1770 | DN65 | DN250 | 1000*5 | 2670 | 70 | 910 | |
| YWBL-25 | 500 | 5-7 | 12-18 | 12-24 | 2200 | DN65 | DN300 | 1100*6 | 2740 | 70 | 1024 | |
| YWBL-30 | 600 | 6-9 | 14-22 | 15-30 | 2770 | DN65 | DN300 | 1200*6 | 2870 | 70 | 1165 | |
| YWBL-36 | 720 | 7-10 | 16-24 | 18-36 | 2870 | DN80 | DN300 | 1200*6 | 2970 | 70 | 1202 | |
| YWBL-40 | 800 | 8-12 | 20-30 | 20-40 | 3500 | DN80 | DN350 | 1300*6 | 3070 | 70 | 1342 | |
| YWBL-45 | 900 | 9-13 | 22-32 | 22-44 | 3630 | DN100 | DN350 | 1300*6 | 3270 | 70 | 1422 | |
| YWBL-52 | 1040 | 10-15 | 25-40 | 26-52 | 4380 | DN100 | DN350 | 1400*6 | 3370 | 75 | 1900 | |
| YWBL-60 | 1200 | 12-18 | 38-42 | 30-60 | 5100 | DN100 | DN400 | 1500*8 | 3530 | 75 | 2114 | |
| YWBL-70 | 1400 | 14-20 | 35-50 | 35-70 | 6940 | DN125 | DN400 | 1600*8 | 4220 | 80 | 2662 | |
| YWBL-80 | 1600 | 16-24 | 40-60 | 40-80 | 8300 | DN125 | DN400 | 1800*8 | 4220 | 80 | 3882 | |
