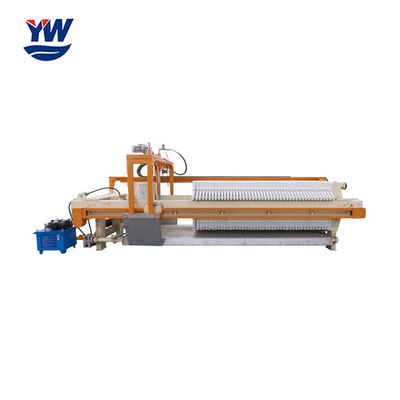

High Pressure Chamber Filter Press Wastewater Sludge Filter Press Machine

High Pressure Chamber Filter Press Wastewater Sludge Filter Press Machine
High Pressure Chamber Filter Press Wastewater Sludge Filter Press Machine High Pressure Chamber Filter Press Wastewater Sludge Filter Press Machine High Pressure Chamber Filter Press Wastewater Sludge Filter Press Machine High Pressure Chamber Filter Press Wastewater Sludge Filter Press Machine High Pressure Chamber Filter Press Wastewater Sludge Filter Press Machine

Large Image :  High Pressure Chamber Filter Press Wastewater Sludge Filter Press Machine

Product Details:
Place of Origin: China
Brand Name: Yuwei
Certification: CE / ISO
Model Number: YWXAZ
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Bubble Wrap/ Wooden Case
Delivery Time: 10-20 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 500 Unit per Month

High Pressure Chamber Filter Press Wastewater Sludge Filter Press Machine

Description
Name: Chamber Filter Press Material: Carbon Steel
Plate Material: PP Plate Shifting: Auto
Working Pressure: 0.6 MPa Closing Pressure: 18 Mpa
Power: 380V/50HZ/3PHS Control: PLC
High Light:

High Pressure Chamber Filter Press

,

Chamber filter press wastewater sludge

,

Wastewater Sludge Filter Press Machine

High Pressure Chamber Filter Press Wastewater Sludge Filter Press Machine

Introduction

High Pressure Chamber filter press is a kind of equipment which widely used for solid-liquid separation.

Program controlled automatic chamber filter press can use microcomputer processor, PLC and touch screen for various operations, such as: pressing plate, open/close drip tray, loosen and pull the filter plate, cloth washing etc. The main advantages are convenient replacement of filter clothes, simple structure, low malfunction rate, low moisture content of filter cake, convenient slag discharge, etc.

Working Principle

The high pressure chamber filter press is composed of two adjacent recessed filter plates;The surface of the filter plate has pits and bosses to support the filter cloth. There are through holes in the center and corners of the filter plate, which form a complete channel after assembly, which can pass in the suspension, wash water and lead out the filtrate. There are handles on both sides of the filter plate, which are supported on the beam, and the filter plate is pressed by the pressing device. The filter cloth between the filter plates acts as a seal.

Under the pressure of the feeding pump, the material liquid that needs to be filtered is sent to each filter chamber, and the solid and liquid are separated through the filter medium (select the appropriate filter cloth according to different industries). A filter residue is formed on the filter cloth until the filter chamber is filled to form a filter cake. The filtrate passes through the filter cloth and flows along the groove of the filter plate to the lower outlet hole channel for centralized discharge. After the filtration is completed, the residue on the filter clothes can be washed with clear washing water.

Features

  1. Higher feeding pressure: 0.6-1.2MPa
  2. Automatic washing filter clothes system, save labor cost and extend cloth lifespan.
  3. Filter press plate adopts reinforced pp material.
  4. Chamber type filter plates have stable working and less malfunction.
  5. Has higher cost performance, cheaper than membrane filter press and plate frame filter press.
  6. Widely used for various industries and is the most popular filter press type in the market.
  7. The plates has great plasticity. It not only can be design for high pressure filter press, but also can be used for high temperature filter press.
  8. Automatic filter cake discharging saves labor cost.

Product Display

High Pressure Chamber filter press High Pressure Chamber filter press High Pressure Chamber filter press

Specification

Model Filter Area Plate size Filter chamber volume Plate NO Filtration pressure Motor power Dimensions L*W*H(mm)
XMZ200/1500−35U 200 1500*1500 2998 49 ≥0.6 7.5 6400*2200*1900
XMZ250/1500−35U 250 3594 61 7225*2200*1900
XMZ300/1500−35U 300 4347 74 8130*2200*1900
XMZ350/1500−35U 350 5043 86 8950*2200*1900
XMZ400/1500−35U 400 5796 99 9880*2200*1900
XMZ450/1500−35U 450 6492 111 10690*2200*1900
XMZ500/1500−35U 500 7187 123 11560*2200*1900
XMZ600/2000−40U 600 2000*2000 8926 85 15 11100*3000*2500
XMZ700/2000−40U 700 10380 99 12200*3000*2500
XMZ800/2000−40U 800 11210 107 13350*3000*2500
XMZ900/2000−40U 900 13290 127 14500*3000*2500
XMZ1000/2000−40U 1000 14740 141 15600*3000*2500

Applications

Program controlled a High Pressure Chamber filter press is widely used for solid-liquid separation in petrochemical, metallurgy (gold, silver, copper, iron, zinc, rare earth, etc.), oil (light oil, glycerin, machine oil, vegetable oil, etc.), ceramics (bentonite, activated clay, china clay, etc.) and other industries.
