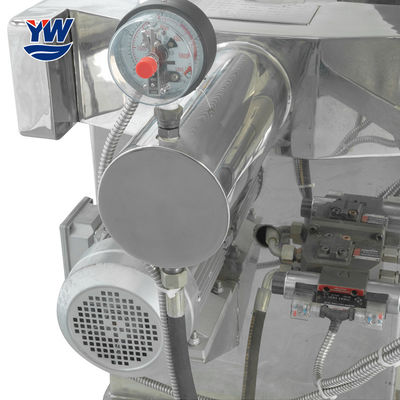

304/316L SS Filter Press Small Scale Filter Press Plate And Frame Filtration

304/316L SS Filter Press Small Scale Filter Press Plate And Frame Filtration
304/316L SS Filter Press Small Scale Filter Press Plate And Frame Filtration 304/316L SS Filter Press Small Scale Filter Press Plate And Frame Filtration 304/316L SS Filter Press Small Scale Filter Press Plate And Frame Filtration 304/316L SS Filter Press Small Scale Filter Press Plate And Frame Filtration 304/316L SS Filter Press Small Scale Filter Press Plate And Frame Filtration

Large Image :  304/316L SS Filter Press Small Scale Filter Press Plate And Frame Filtration

Product Details:
Place of Origin: China
Brand Name: Yuwei
Certification: CE / ISO
Model Number: YWGMZ
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: wooden case, bubble wrap
Delivery Time: 10-20 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 500 units per month

304/316L SS Filter Press Small Scale Filter Press Plate And Frame Filtration

Description
Product Name: SS Filter Press Material: SS304/316L
Feed Pressure: 0.6 MPa Type: Fame And Plate
Plate Material: SS316/304 Filter Precision: 0.22-0.45 Micron
Plate Shifting: Manual Contorl Method: PLC
Beam: SS304/316 Close Method: Hydralic/Mechanical
High Light:

316L SS Filter Press

,

304 SS Filter Press

,

small filter press machine

304/316L SS Filter Press Small Scale Filter Press Plate And Frame Filtration

Introduction

The SS 304/316L plate and frame filter press is suitable for filtration of liquids with concentration below 50%, low viscosity and less slag content, so as to meet the requirements of fine filtration and semi fine filtration such as purification, sterilization and clarification. This machine has large filtration area, large flow and large application range, so it is widely used in pharmaceutical, chemical, food and other industries. It is applied to the filtration of pharmaceutical injections in pharmaceutical factories, and the effect is very good.

Working Principle

The suspended solution is pumped into filter chamber, under the feeding pressure, the filtrate pass through the filter media and then discharged from the outlet. The solid will become cakes. Thus realize solid -liquid separation.

Features

  1. Low cake moisture.
  2. Food grade,clean and sanitary.
  3. Resist high temperature and corrosion.
  4. Good sealing effect can perfectly avoid leakage.

Product Display

SS 304/316L plate and frame filter press SS 304/316L plate and frame filter press SS 304/316L plate and frame filter press SS 304/316L plate and frame filter press

Specification

Model Filter area(m²) Plate size(mm) chamber volume(L) Number plate(pcs) Plate NO.(pcs) Filtration pressure(MPa) Dimension
BAQ1/320 1 320*320 13 4 5 0.6 1050*700*680
BAQ2/320 2 25 9 10 1405*700*680
BAQ3/320 3 38 14 15 1650*700*680
BAQ4/450 4 450*450 51 9 10 1680*880*900
BAQ6/450 6 76 14 15 1980*880*900
BAQ8/450 8 102 19 20 2180*880*900
BAQ10/450 10 122 24 25 2430*880*900
BAQ12/450 12 152 29 30 2680*880*900
BAY4/450 4 51 9 10 2030*880*900
BAY6/450 6 76 14 15 2280*880*900
BAY8/450 8 102 14 15 2530*880*900
BAY10/450 10 122 19 20 2780*880*900
BAY12/450 12 152 29 30 3030*880*900
BAY15/630 15 630*630 189 18 19 2630*950*1010
BAY20/630 20 250 24 25 2930*950*1010
BAY30/630 30 377 37 38 3580*950*1010
BAY30/800 30 725 442 22 23 3150*1300*1300
BAY40/800 40 595 30 31 3630*1300*1300
BAY50/800 50 748 38 39 4110*1300*1300

Applications

Pharmaceutical industry

Antibiotics, Vitamins, API, traditional Chinese medicine, preparation, oral liquid, pharmaceutical intermediate, etc.

Wine industry

Beer ,wine,liquor,Liqueur,yellow wine, sake, fruit wine, medicinal liquor, etc.

Food and beverage industry

Fruit juice, dairy products, tea drinks, syrup,honey, sucrose, vinegar, soy sauce, olive oil, tea oil and other edible oil, medicinal oil, etc.

Biological industry

Oral liquid, gelatin, seaweed glue, synthetic plasma, plant extract, food additive, enzyme preparation, etc.

Petrochemical Industry

Paraffin, resin, Inorganic acid, organic acids, alcohol, benzene,industrial oil, electroplating solution, paint, ink and electroplating wastewater treatment, etc.
