|Product Name:||SS Stack Screw Filter Press||Material:||SS304/316L|
|Working Method:||Automatic||Contorl Method:||PLC|
volute dewatering system,
volute filter press,
wastewater screw press
Sewage Treatment Snail Stacker Stainless Steel Snail Stacker Sludge Dewatering Machine Sludge Dewatering Snail Stacker
1. Suitable for sludge in municipal sewage, food, beverage, chemical industry, leather, welding consumables, papermaking, printing and dyeing, pharmaceutical and other industries.
2. It is suitable for dewatering of high and low concentration sludge. When dewatering low concentration (2000mg/L~) sludge, there is no need to build a concentration tank and a storage tank, which reduces the construction cost and reduces the release of phosphorus and the generation of anaerobic odor.

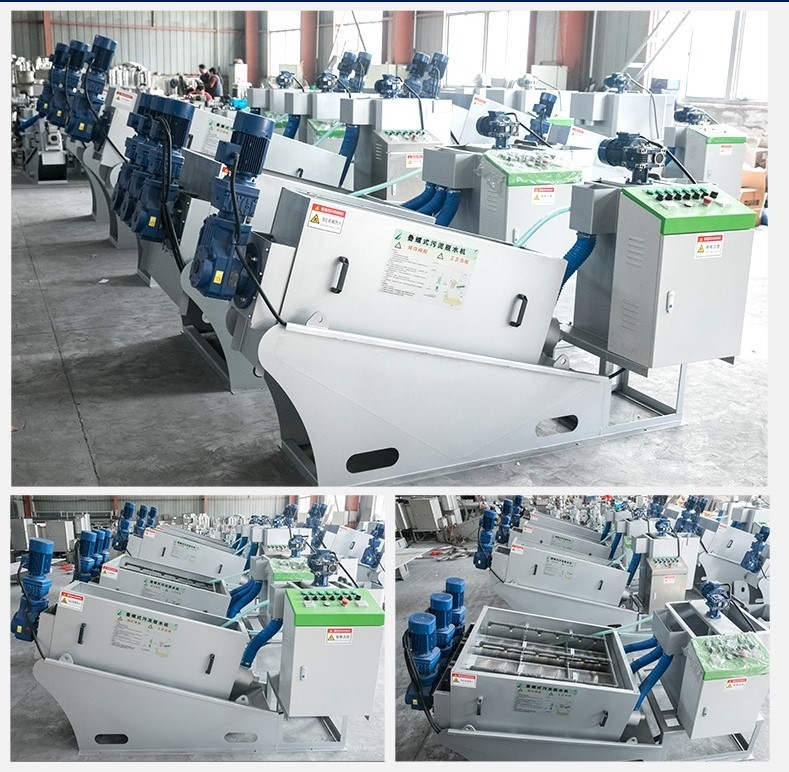

1. The design is compact. The dehydrator includes an electric control cabinet, a metering tank, a flocculation mixing tank and the main body of the dehydrator.
2. Small footprint, easy maintenance and replacement; small weight, easy to carry.
Not easy to block
1. It has the function of self-cleaning. There is no need for cleaning to prevent filter clogging, reducing flushing water consumption and reducing the burden of internal circulation.
2. Good at dewatering of oily sludge.
running at low speed
1. The rotation speed of the screw shaft is about 2~3 rpm, and the power consumption is low.
2. Fewer failures, less noise and vibration, and safe operation.
easy to use
1. Through the electric control cabinet, it is linked with the brewing machine, the mud feeding pump, the dosing pump, etc. to achieve 24-hour continuous unmanned operation.
2. The daily maintenance time is short and the maintenance work is simple.
1. The body is almost entirely made of stainless steel, which can maximize the service life.
2. The replacement parts are only the screw shaft and the moving ring, and the service cycle is long.
● The design of the machine is compact, and the concentration and dehydration are integrated. It is equipped with auxiliary devices such as electric control cabinet and sludge flocculation mixing tank. It has strong compatibility with supporting equipment and is easy to design.
● Small design, easy to adapt to local conditions, can reduce the space and construction cost of the dehydrator itself.
● With the sludge thickening function, no thickening and storage unit is required, which reduces the overall footprint and construction cost of the sewage treatment facility.
● The main body of the dehydrator has a self-cleaning function, so it is not necessary to wash with a large amount of water to prevent sludge clogging.
● Using low-speed screw extrusion technology, low power consumption.
● The electric control cabinet is equipped with an automatic control device, which realizes 24-hour automatic continuous unmanned operation from sludge transportation, injection of liquid medicine, concentration and dehydration, and discharge of mud cake, reducing labor costs
|Model||abs dry mud
|YWDL-101||6~12||~1.2m3/h||~ 1m3/h||~ 0.5m3/h||~ 0.4m3/h||~ 0.3m3/h|
|YWDL-201||9-20||~2m3/h||~1.5m3/h||~0.8m3/h||~ 0.6m3/h||~ 0.45m3/h|
|YWDL-202||18~40||~4m3/h||~ 5m3/h||~ 1.6m3/h||~ 1.2m3/h||~ 0.9m3/h|
|YWDL-251||20~50||~5m3/h||~ 3.5m3/h||~ 3m3/h||~ 2m3/h||~ 1m3/h|
|YWDL-252||40~ 100||~10m3/h||~ 8m3/h||~ 4m3/h||~ 3m3/h||~ 2m3/h|
|YWDL.301||30~60||~6.5m3/h||~ 5m3/h||~ 2.5m3/h||~ 2m3/h||~ 1.5m3/h|
|YWDL-302||60~120||~13m3/h||~ 10m3/h||~5m3/h||~ 4m3/h||~ 3m3/h|
|YWDL-351||70-150||~13m3/h||~ 10m3/h||~5m3/h||~ 4m3/h||~ 3m3/h|
|YWDL-352||90-180||~17m3/h||~ 15m3/h||~7.5m3/h||~ 6m3/h||~ 4.5m3/h|
|YWDL-401||40-200||~10m3/h||~ 8m3/h||~ 6m3/h||~ 5m3/h||~4m3/h|
|YWDL-402||80~400||~20m3/h||~ 16m3/h||~ 12m3/h||~ 10m3/h||~ 8m3/h|
|YWDL-403||120-600||~30m3/h||~ 24m3/h||~ 18m3/h||~ 15m3/h||~ 12m3/h|
|YWDL-404||100-800||~40m3/h||~ 32m3/h||~ 24m3/h||~ 20m3/h||~ 16m3/h|
