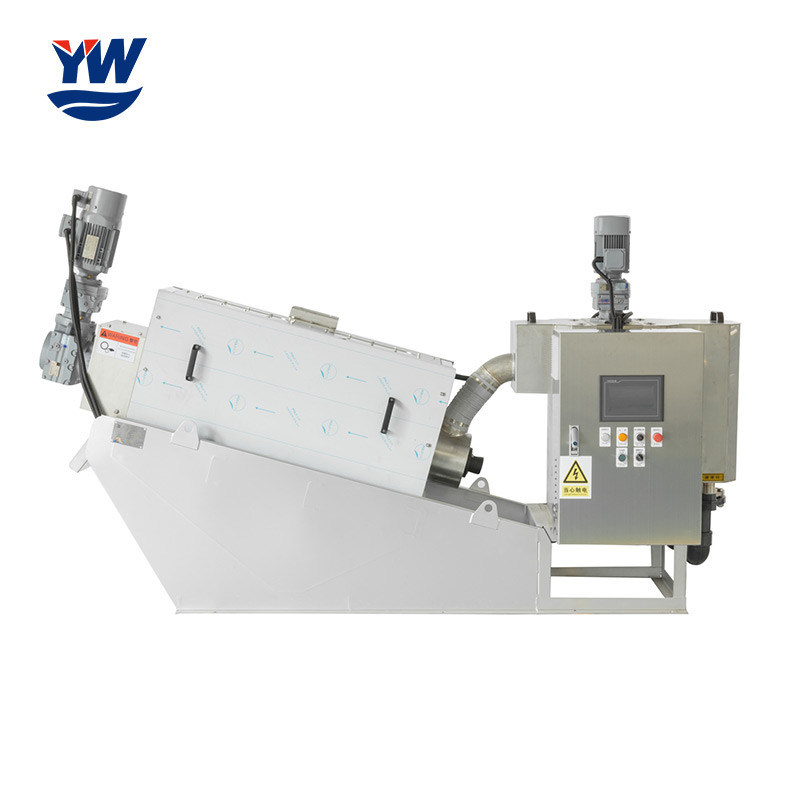

|Product Name:||SS Stack Screw Filter Press||Material:||SS304/316L|
Volute Sludge Dewatering Machine System,
316L Volute Sludge Dewatering Machine,
316L Volute Screw Dewatering Press
The screw stacker is the abbreviation of the screw stacker sludge dewatering machine. It is a water treatment system widely used in municipal sewage treatment projects and petrochemical, light industry, chemical fiber, paper, pharmaceutical, leather and other industrial industries. The actual operation has proved that the stacked screw sludge dewatering can create considerable economic and social benefits for customers.
|Model||abs dry mud(kg-DS/h)||0.20%||1%||2%||3%||5%|
|YWDL-101||6~12||~1.2m³/h||~ 1m³/h||~ 0.5m³/h||~ 0.4m³/h||~ 0.3m³/h|
|YWDL-201||9~20||~2m³/h||~1.5m³/h||~0.8m³/h||~ 0.6m³/h||~ 0.45m³/h|
|YWDL-202||18~40||~4m³/h||~ 5m³/h||~ 1.6m³/h||~ 1.2m³/h||~ 0.9m³/h|
|YWDL-251||20~50||~5m³/h||~ 3.5m³/h||~ 3m³/h||~ 2m³/h||~ 1m³/h|
|YWDL-252||40~100||~10m³/h||~ 8m³/h||~ 4m³/h||~ 3m³/h||~ 2m³/h|
|YWDL.301||30~60||~6.5m³/h||~ 5m³/h||~ 2.5m³/h||~ 2m³/h||~ 1.5m³/h|
|YWDL-302||60~120||~13m³/h||~ 10m³/h||~5m³/h||~ 4m³/h||~ 3m³/h|
|YWDL-351||70~150||~13m³/h||~ 10m³/h||~5m³/h||~ 4m³/h||~ 3m³/h|
|YWDL-352||90~180||~17m³/h||~ 15m³/h||~7.5m³/h||~ 6m³/h||~ 4.5m³/h|
|YWDL-401||40~200||~10m³/h||~ 8m³/h||~ 6m³/h||~ 5m³/h||~4m³/h|
|YWDL-402||80~400||~20m³/h||~ 16m³/h||~ 12m³/h||~ 10m³/h||~ 8m³/h|
|YWDL-403||120~600||~30m³/h||~ 24m³/h||~ 18m³/h||~ 15m³/h||~ 12m³/h|
|YWDL-404||100~800||~40m³/h||~ 32m³/h||~ 24m³/h||~ 20m³/h||~ 16m³/h|
The main body of the stacked screw dehydrator is a filter device formed by stacking a fixed ring and a moving ring, and the screw shaft runs through it. The front section is the concentration section, and the rear section is the dehydration section. The filter gap formed between the fixed ring and the moving ring and the pitch of the screw shaft gradually decrease from the concentration part to the dehydration part. The rotation of the screw shaft pushes the sludge to be transported from the thickening part to the dewatering part, and at the same time drives the swimming ring to clean the filter seam to prevent clogging.
The recommended sludge concentration is between 2000mg/L and 5000mg/L.
Equipped with a proprietary rotary disc pre-concentration device, it is better at dealing with low-concentration sludge, improving the shortcomings of existing gravity concentration, and achieving high-efficiency concentration of low-concentration sludge.
The integration of flocculation and concentration is completed, and the subsequent dehydration pressure is reduced and the expansion valve is adjusted to adjust the sludge concentration to a better dehydration state.
The dynamic fixed ring replaces the filter cloth, self-cleaning, no clogging, easy to deal with oily sludge
Under the action of the rotation of the screw shaft, the movable plate of the stacked screw sludge dewatering machine is constantly displaced relative to the fixed plate, so as to realize the continuous self-cleaning process and avoid the common clogging problem of the traditional dewatering machine. Therefore, it has strong anti-oil pollution ability, easy separation and no blockage. And it is equipped with high pressure water gun.
Energy saving and emission reduction, reduce noise pollution
The screw type sludge dewatering machine relies on large-scale equipment such as volumetric pressure dewatering and barrel matching to achieve a low operating speed of 2-4 revolutions per minute. Therefore, the machine can achieve low energy consumption, low water consumption, and low noise. The average energy consumption is only 1/8 of the belt machine, 1/20 of the centrifuge, and the unit energy consumption is only 0.01-0.1 kwh/kg-DS, which can reduce the operating cost of the sewage treatment system.
