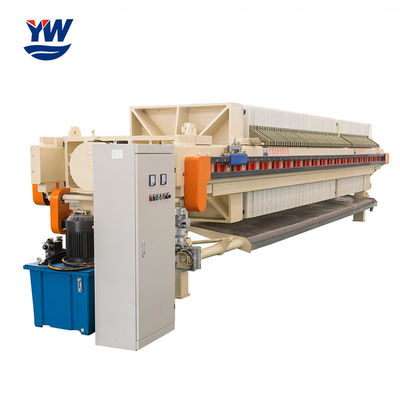

Product Details:
|
| Name: | Chamber Filter Press | Material: | Carbon Steel |
|---|---|---|---|
| Beam: | Iron Coating Q235 | Voltage: | Customized |
| Plate Shiting: | Automatic | Filter Plate Size: | 1000mm |
| Closing Method: | Hydralic | Control: | PLC |
| Stream: | Open | Feeding Pressure: | 0.6Mpa |
| High Light: | automatic membrane filter press 1000mm,membrane filter press for wastewater treatment,membrane filter press for oil |
||
A filter press is a batch operation, fixed volume piece of equipment ranging from 0.1m3 -20m3 that separates liquids and solids using pressure filtration. Slurry is pumped into the filter press and dewatered under pressure. A filter press can be used for solid-liquid separation or wastewater treatment in a variety of different industries and applications, such as mining, metallurgy, petrol, chemical, medical, dyeing, paper, food, alcohol, textile production, etc..
| Model | Filter Area | Plate size | Cake thickness | Filter chamber volume | Plate NO | Filtration pressure | Motor power | Weight | Dimensions L*W*H(mm) | Foundation Size(mm) | |||
| L | B | D | H | ||||||||||
| X_M^AZ30/870−30U_K^B | 30 | 870*870 | 30 | 460 | 23 | 0.6 | 2.2 | 2680 | 3180*1400*1230 | 2360 | 700 | 1380 | 785 |
| X_M^AZ40/870−30U_K^B | 40 | 595 | 30 | 3050 | 3570*1400*1230 | 2750 | |||||||
| X_M^AZ50/870−30U_K^B | 50 | 748 | 38 | 3456 | 4110*1400*1230 | 3290 | |||||||
| X_M^AZ60/870−30U_K^B | 60 | 902 | 46 | 4003 | 4550*1400*1230 | 3730 | |||||||
| X_M^AZ70/870−30U_K^B | 70 | 1056 | 54 | 4584 | 4990*1400*1230 | 4170 | |||||||
| X_M^AZ80/870−30U_K^B | 80 | 1210 | 62 | 5082 | 5430*1400*1230 | 4610 | |||||||
| X_M^AZ50/870−30U_K^B | 50 | 1000*1000 | 30 | 736 | 28 | ≥0.6 | 4 | 4128 | 4040*1500*1400 | 3120 | 780 | 1480 | 870 |
| X_M^AZ60/870−30U_K^B | 60 | 889 | 34 | 4636 | 4460*1500*1400 | 3480 | |||||||
| X_M^AZ70/870−30U_K^B | 70 | 1041 | 40 | 5143 | 4760*1500*1400 | 3840 | |||||||
| X_M^AZ80/870−30U_K^B | 80 | 1193 | 46 | 5651 | 5120*1500*1400 | 4200 | |||||||
| X_M^AZ100/870−30U_K^B | 100 | 1475 | 57 | 6628 | 5780*1500*1400 | 4860 | |||||||
| X_M^AZ120/870−30U_K^B | 120 | 1777 | 69 | 7644 | 6500*1500*1400 | 5580 | |||||||
| X_M^AZ100/1250−30U_K^B | 100 | 1250*1250 | 30 | 1468 | 36 | ≥0.6 | 4 | 8307 | 5020*1800*1600 | 3970 | 850 | 1740 | 995 |
| X_M^AZ120/1250−30U_K^B | 120 | 1746 | 43 | 9308 | 5470*1800*1600 | 4430 | |||||||
| X_M^AZ140/1250−30U_K^B | 140 | 2063 | 51 | 10455 | 5990*1800*1600 | 4950 | |||||||
| X_M^AZ160/1250−30U_K^B | 160 | 2341 | 58 | 11492 | 6450*1800*1600 | 5400 | |||||||
| X_M^AZ180/1250−30U_K^B | 180 | 2619 | 65 | 12494 | 6905*1800*1600 | 5860 | |||||||
| X_M^AZ200/1250−30U_K^B | 200 | 2896 | 72 | 13504 | 7360*1800*1600 | 6310 | |||||||
| X_M^AZ220/1250−30U_K^B | 220 | 3214 | 80 | 14652 | 7880*1800*1600 | 6830 | |||||||
| X_M^AZ250/1250−30U_K^B | 250 | 3650 | 91 | 16227 | 8600*1800*1600 | 7550 | |||||||
| X_M^AZ200/1500−35U_K^B | 200 | 1500*1500 | 35 | 2998 | 49 | ≥0.6 | 7.5 | 20030 | 6400*2200*1900 | 5250 | 1170 | 1990 | 1070 |
| X_M^AZ250/1500−35U_K^B | 250 | 3594 | 61 | 22978 | 7225*2200*1900 | 6090 | |||||||
| X_M^AZ300/1500−35U_K^B | 300 | 4347 | 74 | 26026 | 8130*2200*1900 | 6990 | |||||||
| X_M^AZ350/1500−35U_K^B | 350 | 5043 | 86 | 29220 | 8950*2200*1900 | 7840 | |||||||
| X_M^AZ400/1500−35U_K^B | 400 | 5796 | 99 | 32574 | 9880*2200*1900 | 8750 | |||||||
| X_M^AZ450/1500−35U_K^B | 450 | 6492 | 111 | 35586 | 10690*2200*1900 | 9590 | |||||||
| X_M^AZ500/1500−35U_K^B | 500 | 7187 | 123 | 38606 | 11560*2200*1900 | 10430 | |||||||
| X_M^AZ600/2000−40U_K^B | 600 | 2000*2000 | 40 | 8926 | 85 | ≥0.6 | 15 | 49000 | 11100*3000*2500 | 9200 | 1660 | 2000 | 1050 |
| X_M^AZ700/2000−40U_K^B | 700 | 10380 | 99 | 53000 | 12200*3000*2500 | 10300 | |||||||
| X_M^AZ800/2000−40U_K^B | 800 | 11210 | 107 | 57000 | 13350*3000*2500 | 11450 | |||||||
| X_M^AZ900/2000−40U_K^B | 900 | 13290 | 127 | 61000 | 14500*3000*2500 | 12600 | |||||||
| X_M^AZ1000/2000−40U_K^B | 1000 | 14740 | 141 | 65000 | 15600*3000*2500 | 15600 | |||||||
It is imperative to keep your concrete tanks clean after each run, large amount of waste concrete slurry arises from the cleaning process, which demands immediate attention due to enviromental reasons and government regulations. Our Filter Press provides the ideal solution to your waste concrete slurry, keep you away from troublesome waste water. Contact us for a tailor made proposal to your mixing plant.
