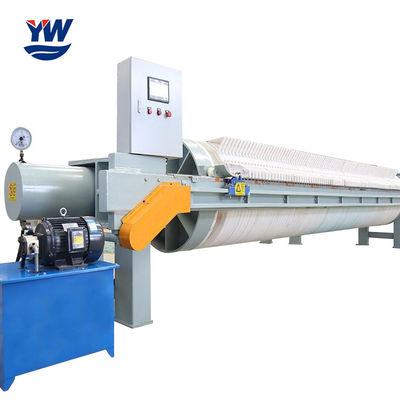

Ceramic Clay Filter Press Building For Slurry Kaolin High Pressure Round Plate

Ceramic Clay Filter Press Building For Slurry Kaolin High Pressure Round Plate
Ceramic Clay Filter Press Building For Slurry Kaolin High Pressure Round Plate Ceramic Clay Filter Press Building For Slurry Kaolin High Pressure Round Plate Ceramic Clay Filter Press Building For Slurry Kaolin High Pressure Round Plate Ceramic Clay Filter Press Building For Slurry Kaolin High Pressure Round Plate Ceramic Clay Filter Press Building For Slurry Kaolin High Pressure Round Plate

Large Image :  Ceramic Clay Filter Press Building For Slurry Kaolin High Pressure Round Plate

Product Details:
Place of Origin: China
Brand Name: Yuwei
Certification: CE / ISO / FDA
Model Number: YWXMZ
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Bubble Wrap/ Wooden Case
Delivery Time: 15-20 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 500 Unit per Month

Ceramic Clay Filter Press Building For Slurry Kaolin High Pressure Round Plate

Description
Name: Chamber Filter Press Material: Carbon Steel
Beam: PP Coating Q235 Type: Chamber
Plate Shiting: Automatic Filter Plate Material: PP
Closing Method: Hydralic Control: Manual
Brand: Yuwei Pressure: 2.5 Mpa
High Light:

Ceramic Clay Filter Press

,

Clay Filter Press Building

,

Building filter press

Introduction

The circular filter plate filter press adopts hydraulic device as the power mechanism for pressing and loosening the filter plate. The filter plate is round and is made of high-strength and high-toughness polyethylene material with high compressive strength. Good, high pressure resistance. Mainly used for high pressure filtration of clay, porcelain clay, petroleum dewaxing, etc. Round high pressure filter press.

Product structure and features:

The 1000-type circular filter plate filter press is mainly used for solid-liquid separation of various suspensions. It is an intermittent pressure filtration equipment. Under the action of the filter press, the solid material forms a filter cake, which is convenient for transportation and disposal, while the liquid can be recycled. Thereby achieving environmental protection and cost savings.
The circular filter plate filter press consists of a frame, a filter plate, a pressing system and an electrical control system. Among them, the frame part plays the role of supporting the pressing device and the filter plate, and its components include a machine base, a pressing plate, a thrust plate and a main beam. The filter plate is installed on the main beam between the pressing plate and the thrust plate, and the filter cloth is sandwiched therebetween.

Certificate

Certificates

Application

It is widely used in the production process of various industrial industries such as chemical, petroleum, pharmaceutical, sugar, metallurgy, food, ceramics, starch, etc. and the purification of various industrial wastewater and domestic sewage.

Application

Specification

Model Filter Press Plate Size(mm) Filter Chamber Volume(L) Plate NO.(pcs) Filtration Pressure(Mpa) Dimensions L*W*H(mm)
AQ1/320−30U 1 380*380 15 4 ≤0.6 1230*570*660
AQ2/320−30U 2 31 9 1455*570*660
AQ3/320−30U 3 46 14 1680*570*660
AQ4/450−30U 4 500*500 60 9 ≤0.6 1630*800*900
AQ6/450−30U 6 91 14 1880*800*900
AQ8/450−30U 8 121 19 2130*800*900
AQ10/450−30U 10 151 24 2380*800*900
AQ12/450−30U 12 182 29 2630*800*900
AQ15/450−30U 15 225 36 2980*800*900
AQ16/450−30U 16 243 39 3130*800*900
AQ15/630−30U 15 700*700 226 18 ≤0.6 2250*1080*1060
AQ20/630−30U 20 297 24 2550*1080*1060
AQ30/630−30U 30 452 37 3200*1080*1060
AQ40/630−30U 40 595 49 3900*1080*1060
