Product Details:
|
| Product Name: | Small SS Filter Press | Material: | 304/316L |
|---|---|---|---|
| Feed Pressure: | 0.6 MPa | Type: | Fame And Plate |
| High Light: | 316 Stainless Steel Filter Press,Pharmaceutical Stainless Steel Filter Press,Pharmaceutical 316 SS Filter Press |
||
Introduction
Stainless steel filter press is used for the separation of various suspensions and has a wide range of applications. Used in food, environmental protection, light industry, medicine, chemical industry, metallurgy, petroleum and other industries. It is especially suitable for fine filtration or sterilization filtration of liquid beverages such as beer, liquor, wine, and edible oil in large quantities.
Features
The suspension enters the filter chamber of the filter press through the material pump. Under the action of pressure, the filtrate passes through the filter layer and the filter cloth, and is discharged through the liquid outlet of the filter cloth. The filter residue is left in the filter frame, so as to achieve the effect of solid-liquid separation.
Specification
| Model | Filter area (m2) |
Plate size (mm) |
Filter chamber volume (L) |
Plate Qty. (Pcs) |
Frame Qty. (Pcs) |
Filtration pressure (Mpa) |
Dimensions L*W*H(mm) |
| BAQ1/320 | 1 | 320*320 | 13 | 4 | 5 | 0.6 | 1050*700*680 |
| BAQ2/320 | 2 | 25 | 9 | 10 | 1405*700*680 | ||
| BAQ3/320 | 3 | 38 | 14 | 15 | 1650*700*680 | ||
| BAQ4/450 | 4 | 450*450 | 51 | 9 | 10 | 1680*880*900 | |
| BAQ6/450 | 6 | 76 | 14 | 15 | 1980*880*900 | ||
| BAQ8/450 | 8 | 102 | 19 | 20 | 2180*880*900 | ||
| BAQ10/450 | 10 | 122 | 24 | 25 | 2430*880*900 | ||
| BAQ12/450 | 12 | 152 | 29 | 30 | 2680*880*900 | ||
| BAQ16/450 | 16 | 203 | 39 | 40 | 3180*880*900 | ||
| BAY4/450 | 4 | 51 | 9 | 10 | 2030*880*900 | ||
| BAY6/450 | 6 | 76 | 14 | 15 | 2280*880*900 | ||
| BAY8/450 | 8 | 102 | 19 | 20 | 2530*880*900 | ||
| BAY10/450 | 10 | 122 | 24 | 25 | 2780*880*900 | ||
| BAY12/450 | 12 | 152 | 29 | 30 | 3030*880*900 | ||
| BAY16/450 | 16 | 203 | 39 | 40 | 3530*880*900 | ||
| BAQ10/610 | 10 | 550*550 | 122 | 15 | 16 | 2180*950*1010 | |
| BAQ12/610 | 12 | 152 | 19 | 20 | 2380*950*1010 | ||
| BAQ15/610 | 15 | 189 | 24 | 25 | 2630*950*1010 | ||
| BAQ20/610 | 20 | 250 | 32 | 33 | 3030*950*1010 | ||
| BAY10/610 | 10 | 122 | 15 | 16 | 2230*950*1010 | ||
| BAY12/610 | 12 | 152 | 19 | 20 | 2430*950*1010 | ||
| BAY15/610 | 15 | 189 | 24 | 25 | 2680*950*1010 | ||
| BAY20/610 | 20 | 250 | 32 | 33 | 3080*950*1010 | ||
| BAQ15/630 | 15 | 630*630 | 189 | 18 | 19 | 2325*950*1010 | |
| BAQ20/630 | 20 | 250 | 24 | 25 | 2630*950*1010 | ||
| BAQ30/630 | 30 | 377 | 37 | 38 | 3280*950*1010 | ||
| BAY15/630 | 15 | 189 | 18 | 19 | 2630*950*1010 | ||
| BAY20/630 | 20 | 250 | 24 | 25 | 2930*950*1010 | ||
| BAY30/630 | 30 | 377 | 37 | 38 | 3580*950*1010 | ||
| BAY30/800 | 30 | 725*725 | 442 | 22 | 23 | 3150*1300*1300 | |
| BAY40/800 | 40 | 595 | 30 | 31 | 3630*1300*1300 | ||
| BAY50/800 | 50 | 748 | 38 | 39 | 4110*1300*1300 |

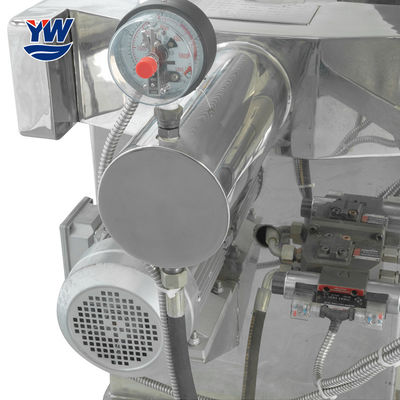

Product display
Application
Stainless steel plate frame filter is suitable for food, environmental protection, light industry, medicine, chemical, metallurgy, petroleum and other industries. It is especially suitable for fine filtration or sterilizing filtration of large quantities of beer, liquor, wine, edible oil and other liquids
