Product Details:
|
| Product Name: | Leaf Filter | HS Code: | 8421299090 |
|---|---|---|---|
| Precision: | 6um | Designed Temperature: | 90 Degrees |
| Material: | Carbon Steel | Slag Discharge: | Automatic |
| Method Of Cake Discharge: | Pneumatic Butterfly Valve Or Cylinder Opening | Capacity: | 9t/h |
| Cylinder Volume: | 890L | Voltage: | Customized |
| High Light: | 890L pressure leaf filter rotary 5t/H,890L industrial pressure leaf filters,890L rotary leaf filter |
||

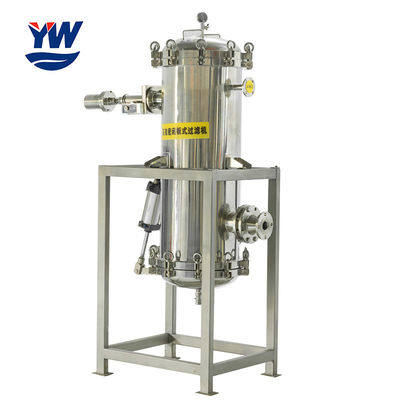

Processing 5t / H Leaf Filter For Environment Protection Industry
The horizontal pressure leaf filter is an enclosed filtration system and can be fully automated. This filter produces a high filtrate clarity after the clarification run and is also suitable for all kinds of filter aids. The regeneration time between the filtration cycles is short. Horizontal pressure leaf filters can also be delivered as tandem units to save floor space. The pressure leaf filter itself has no rotating parts, keeping maintenance to a minimum. These advantages result in an economical filtration solution.
Various materiel are available, eg. stainless steel, carbon steel with rubber, PP, PVDF lining, monel, inconel , etc. 'O' ring sealing are available in BUNA-N, Viton, EPDM, Nitrile, Silicon etc.
| Filter cake volume(L) | Processing power(t/h) | Workpressure(Mpa) | Filtering cylinder volume(L) | I/O Connection | Discharging outlet | Cylinder diameter(mm) | Cylinder height(mm) | Filter spacing(mm) | Weight(Kg) | |||
| Grease | Resin | Drinks | ||||||||||
| YWBL-2 | 30 | 0.4-0.6 | 1-1.5 | 1-2 | 0.1-0.4 | 120 | DN25 | DN100 | 400*3 | 1280 | 50 | 150 |
| YWBL-4 | 60 | 0.8-1.2 | 2-3 | 2-4 | 250 | DN40 | DN125 | 500*3 | 1520 | 50 | 180 | |
| YWBL-7 | 105 | 1.4-2 | 3-5 | 4-8 | 420 | DN40 | DN150 | 600*3 | 1920 | 50 | 326 | |
| YWBL-10 | 150 | 2-3 | 5-8 | 5-10 | 890 | DN50 | DN200 | 800*4 | 2120 | 70 | 474 | |
| YWBL-12 | 240 | 2.4-3.6 | 6-9 | 6-12 | 1190 | DN50 | DN250 | 900*4 | 2220 | 70 | 554 | |
| YWBL-15 | 300 | 3-5 | 7-12 | 8-16 | 1580 | DN50 | DN250 | 1000*5 | 2370 | 70 | 815 | |
| YWBL-20 | 400 | 4-6 | 10-15 | 10-20 | 1770 | DN65 | DN250 | 1000*5 | 2670 | 70 | 910 | |
| YWBL-25 | 500 | 5-7 | 12-18 | 12-24 | 2200 | DN65 | DN300 | 1100*6 | 2740 | 70 | 1024 | |
| YWBL-30 | 600 | 6-9 | 14-22 | 15-30 | 2770 | DN65 | DN300 | 1200*6 | 2870 | 70 | 1165 | |
| YWBL-36 | 720 | 7-10 | 16-24 | 18-36 | 2870 | DN80 | DN300 | 1200*6 | 2970 | 70 | 1202 | |
| YWBL-40 | 800 | 8-12 | 20-30 | 20-40 | 3500 | DN80 | DN350 | 1300*6 | 3070 | 70 | 1342 | |
| YWBL-45 | 900 | 9-13 | 22-32 | 22-44 | 3630 | DN100 | DN350 | 1300*6 | 3270 | 70 | 1422 | |
| YWBL-52 | 1040 | 10-15 | 25-40 | 26-52 | 4380 | DN100 | DN350 | 1400*6 | 3370 | 75 | 1900 | |
| YWBL-60 | 1200 | 12-18 | 38-42 | 30-60 | 5100 | DN100 | DN400 | 1500*8 | 3530 | 75 | 2114 | |
| YWBL-70 | 1400 | 14-20 | 35-50 | 35-70 | 6940 | DN125 | DN400 | 1600*8 | 4220 | 80 | 2662 | |
| YWBL-80 | 1600 | 16-24 | 40-60 | 40-80 | 8300 | DN125 | DN400 | 1800*8 | 4220 | 80 | 3882 | |
