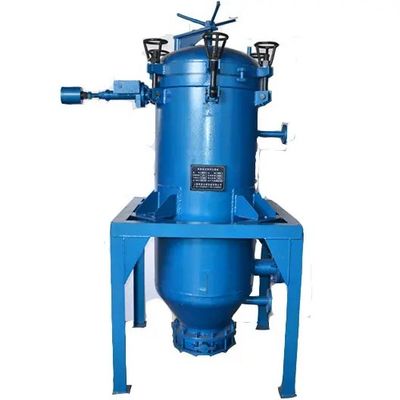

Stainless Steel Leaf Filter Diatomite Filter Airtight Activated Carbon

Basic Information
Place of Origin: China
Brand Name: Yuwei
Certification: CE,ISO
Model Number: YWBL
Minimum Order Quantity: 1
Price: USD+3000-40000+set
Packaging Details: wooden case ,put in container
Delivery Time: 15 days
Payment Terms: T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability: 500+set+per month
Detail Information
Product Name: Leaf Filter HS Code: 8421299090
Precision: 10um Designed Temperature: 100 Degrees
Material: Carbon Steel Slag Discharge: Automatic
Method Of Cake Discharge: Pneumatic Butterfly Valve Or Cylinder Opening Capacity: 20t/h
Cylinder Volume: 2770L Voltage: Customized
High Light:

5 inch leaf filter

,

leaf filter water solutions

,

Stainless Steel Diatomite Filter


Product Description

Stainless Steel Plate Type Airtight Filter Activated Carbon Diatomite White Oil Food Oil Micro-Overflow Plug-In Filter​



1. There is no need for filter cloth and filter paper, which greatly reduces the cost of filtration.
2. Fully enclosed operation, environmental protection, no material loss.
3. Vibration to remove slag greatly reduces labor intensity and realizes continuous operation.
4. Pneumatic valve discharges slag, which greatly reduces the labor intensity of workers.
5. The slag or activated carbon (white clay) in the liquid is filtered or dehydrated, and the vertical leaf filter can completely replace the plate and frame filter, which is the preferred equipment in the filtering industry.



First, ensure the normal operation of the equipment, check whether the equipment is installed in place, whether the valve and the first wheel are tightly closed, and the normal operation of the pressure can be maintained.





Step 1: Open the oil inlet valve and overflow valve, turn on the oil pump, and inject oil into the tank. When the liquid flows out from the overflow pipe sight glass, it means that the raw material liquid has filled the tank.

Step 2 :close the overflow valve, open the circulation valve, and start the circulation, about 5-10 minutes, when the clear night is observed from the sight glass of the liquid outlet, it means that the filter cake has been formed.

Step 3 :close the circulation valve, open the night valve, and start filtering. Generally, the thickness of the filter cake is controlled at 2-3 cm. The pressure change can be observed from the pressure gauge on the upper part of the tank. During the filtering process, with the thickening of the filter cake , the pressure rises, generally when the pressure reaches about 0.4pa, the oil pump needs to be stopped.

Step 4: During the cake blowing process, stop the oil pump, close the liquid inlet valve, open the inlet valve, and start blowing cake. The pressure is generally maintained at 0.45-0.5pa, and the cake blowing effect is the best. Observing from the tube sight glass in the clear night, when there are few half sight mirrors in the clear night, you can stop blowing the cake.

Step 5: During the process of vibrating slag discharge, open the sewage valve, return the raw liquid at the lower part of the vertebral body to the raw liquid tank, open the exhaust valve, make the pressure return to zero, open the butterfly valve, and vibrate the slag discharge.





Scope of application:

1. Petrochemical: polyether, diesel oil, lubricating oil, white oil, transformer oil
2. Mineral oil and base oil: dibutyl ester, dioctyl ester
3. Grease: crude oil, bleaching oil, gasification oil, winterizing oil, etc.
4. Food: gelatin, salad oil, starch, sugar juice, monosodium glutamate, milk, etc.
5. Pharmaceuticals: hydrogen peroxide, vitamin C, glycerin, etc.
6. Coating: varnish, resin paint, varnish, 685 varnish, etc.





BY-MB2 Ф400 50 DN25 DN25 DN150 1550 620*600
BY-MB4 Ф500 50 DN40 DN25 DN200 1800 770*740
BY-MB7 Ф600 50 DN40 DN25 DN250 2200 1310*1000
BY-MB10 Ф800 70 DN50 DN25 DN300 2400 1510*1060
BY-MB12 Ф900 70 DN50 DN40 DN400 2500 1610*1250
BY-MB15 Ф1000 70 DN50 DN40 DN400 2650 1710*1350
BY-MB20 Ф1000 70 DN50 DN40 DN400 2950 1710*1350
BY-MB25 Ф1100 70 DN50 DN40 DN500 3020 1810*1430
BY-MB30 Ф1200 70 DN50 DN40 DN500 3150 2030*1550
BY-MB36 Ф1200 70 DN65 DN50 DN500 3250 2030*1550
BY-MB40 Ф1300 70 DN65 DN50 DN600 3350 2130*1560
BY-MB45 Ф1300 70 DN65 DN50 DN600 3550 2130*1560
BY-MB52 Ф1400 75 DN80 DN50 DN600 3670 2230*1650
BY-MB60 Ф1500 75 DN80 DN50 DN600 3810 2310*1750
BY-MB70 Ф1600 80 DN80 DN50 DN600 4500 3050*1950
BY-MB80 Ф1750 80 DN80 DN50 DN600 4500 3210*2100
BY-MB90 Ф1850 80 DN80 DN50 DN600 4500 3300*2200
  Filter cake volume(L) Processing power(t/h) Workpressure(Mpa) Filtering cylinder volume(L) I/O Connection Discharging outlet Cylinder diameter(mm) Cylinder height(mm) Filter spacing(mm) Weight(Kg)
Grease Resin Drinks
YWBL-2 30 0.4-0.6 1-1.5 1-2 0.1-0.4 120 DN25 DN100 400*3 1280 50 150
YWBL-4 60 0.8-1.2 2-3 2-4 250 DN40 DN125 500*3 1520 50 180
YWBL-7 105 1.4-2 3-5 4-8 420 DN40 DN150 600*3 1920 50 326
YWBL-10 150 2-3 5-8 5-10 890 DN50 DN200 800*4 2120 70 474
YWBL-12 240 2.4-3.6 6-9 6-12 1190 DN50 DN250 900*4 2220 70 554
YWBL-15 300 3-5 7-12 8-16 1580 DN50 DN250 1000*5 2370 70 815
YWBL-20 400 4-6 10-15 10-20 1770 DN65 DN250 1000*5 2670 70 910
YWBL-25 500 5-7 12-18 12-24 2200 DN65 DN300 1100*6 2740 70 1024
YWBL-30 600 6-9 14-22 15-30 2770 DN65 DN300 1200*6 2870 70 1165
YWBL-36 720 7-10 16-24 18-36 2870 DN80 DN300 1200*6 2970 70 1202
YWBL-40 800 8-12 20-30 20-40 3500 DN80 DN350 1300*6 3070 70 1342
YWBL-45 900 9-13 22-32 22-44 3630 DN100 DN350 1300*6 3270 70 1422
YWBL-52 1040 10-15 25-40 26-52 4380 DN100 DN350 1400*6 3370 75 1900
YWBL-60 1200 12-18 38-42 30-60 5100 DN100 DN400 1500*8 3530 75 2114
YWBL-70 1400 14-20 35-50 35-70 6940 DN125 DN400 1600*8 4220 80 2662
YWBL-80 1600 16-24 40-60 40-80 8300 DN125 DN400 1800*8 4220 80 3882



Stainless Steel Leaf Filter Diatomite Filter Airtight Activated Carbon 0
