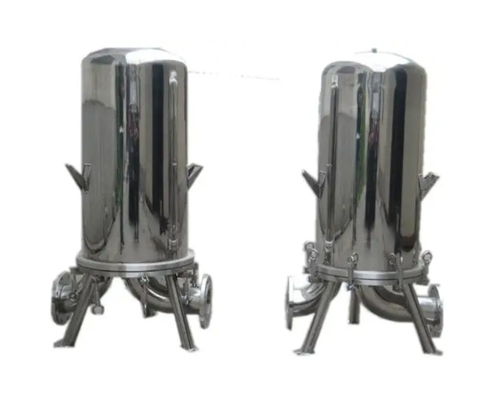

SS304 sanitary cartridge filter housing 10 inch 30 inch 40 inch DN50 Inlet

SS304 sanitary cartridge filter housing 10 inch 30 inch 40 inch DN50 Inlet
SS304 sanitary cartridge filter housing 10 inch 30 inch 40 inch DN50 Inlet

Large Image :  SS304 sanitary cartridge filter housing 10 inch 30 inch 40 inch DN50 Inlet

Product Details:
Place of Origin: China
Brand Name: Yuwei
Certification: CE,ISO
Model Number: YWLX
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD+500-10000+set
Packaging Details: wooden case or neaked by container
Delivery Time: 5-8 days
Payment Terms: Western Union, T/T, D/P, D/A, MoneyGram, L/C
Supply Ability: 500+set+per month

SS304 sanitary cartridge filter housing 10 inch 30 inch 40 inch DN50 Inlet

Description
Product Namee: Cartridge Filter Material: Ss304
Capacity: 2-500 GPM Cartridge Size: 10, 20, 30, 40"
Inlet/Outlet Dia: DN25-DN200 Height: 1000mm
Housing Diameter: 102mm O-rings: Silicone
Usage: Beverage Warranty: 1 Year
Filter Cartridge: PP/SS304/SS316L
High Light:

SS304 sanitary cartridge filter housing

,

sanitary cartridge filter housing DN50 Inlet

,

30 cartridge filter housing

DN50 Inlet SS304 Housing Cartridge Filter With PP Material Cartridge



The folding filter element is a precision filter device made of polypropylene thermal spray fiber membrane and nylon polytetrafluoroethylene (PTEE) microporous filter membrane. It has the advantages of small volume, large filtering area and high precision. The filtering accuracy can range from 0.1 μ M to 60 μ m. The sealing of the end cover of the filter element and the connection of the overall structure adopt hot-melt bonding. There are three types of filter element joints commonly used internationally: 222 joint, 226 joint and flat mouth. The products are strictly and completely tested before leaving the factory to ensure the stable performance of the products.





Specification



Theoretical flow Filter Cartridge Inlet/Outlet ConnrctionType Dimension(mm)
T/H QTY Length A B C D E
0.3-0.5 1 10" DN20 Fast Assembly/Flange 600 400 80 100 220
0.6-1 20" DN20 800 650
1-1.5 30" DN20 1050 900
1-1.5 3 10" DN25 650 450 120 200 320
1.5-3 20" DN25 900 700
3-4.5 30" DN32 1150 950
1.5-2.5 5 10" DN32 650 450 120 220 350
3-5 20" DN32 900 700
5-7 30" DN40 1150 950
2-3.5 7 10" DN40 950 700 150 250 400
4-7 20" DN50 1200 950
7-10 30" DN50 1450 1200
6-8 9 20" DN50 1000 700 150 300 450
8-12 30" DN50 1250 950
12-15 40" DN50 1500 1200
6-12 12 20" DN50 Flange 1100 800 200 350 500
12-18 30" DN65 1350 1050
16-24 40" DN65 1600 1300
8-15 15 20" DN50 1100 800 200 400 550
18-25 30" DN65 1350 1050
20-30 40" DN80 1600 1300
12-21 21 20" DN65 1150 800 200 450 600
21-31 30" DN80 1400 1100
27-42 40" DN100 1650 1300





SS304 sanitary cartridge filter housing 10 inch 30 inch 40 inch DN50 Inlet 0
