Product Details:
|
| Product Name: | Small SS Filter Press | Material: | Ss304 |
|---|---|---|---|
| Feed Pressure: | 0.2-0.6 MPa | Type: | Open |
| Plate Material: | SS316/304 | Filter Precision: | 0.22/0.45 Micron |
| Plate Shifting: | Manual | Beam: | SS304/316 |
| Close Method: | Mechanical | ||
| High Light: | lab scale plate and frame filter press,plate and frame filter press for edible oil,edible oil plate filter Multilayer |
||

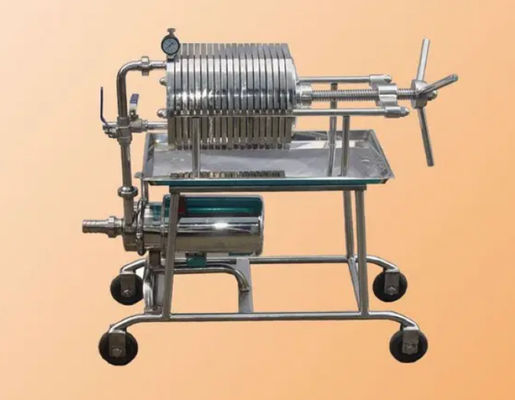

The stainless steel multi-layer plate and frame filter press is applicable to the closed filtration of liquids with concentration below 50%, low viscosity and less slag content, so as to meet the requirements of purification, sterilization, clarification and other fine filtration, de activated carbon, particle removal and semi fine filtration. The microporous filter membrane can be directly selected, and the purpose of aseptic filtration can be achieved without microporous membrane filter).
This machine has large filtering area, large flow and wide application range, so it is used in pharmaceutical, chemical, food and other industries. It is applied to the filtration of injection liquid in pharmaceutical factories, and the effect is very good.
Working principle and structural features
The suspension is pumped into each closed filter chamber of the filter. Under the action of working pressure, the filtrate passes through the filter membrane or other filter materials and is discharged through the liquid outlet. The filter residue remains in the frame to form a filter cake, so as to achieve solid-liquid separation.
| Model | Layer Qty | Filter area(m²) | Plate Size(mm) | Filtering Precision(um) | Designed Pressure | Water flow(t/h) | Feeding Pump Power | Dimensions |
| YWCR-100 | 10 | 0.08 | φ100 | 0.22-100 | 0.3 | 0.2 | 0.37 | 600x300x600 |
| YWCR-150 | 10 | 0.18 | φ150 | 0.22-100 | 0.3 | 0.45 | 0.37 | 650x380x650 |
| YWCR-200 | 10 | 0.31 | φ200 | 0.22-100 | 0.3 | 0.8 | 0.37 | 650x400x700 |
| YWCR-300 | 10 | 0.7 | φ300 | 0.22-100 | 0.3 | 1.8 | 0.55 | 700x500x800 |
| YWCR-400 | 10 | 1.25 | φ400 | 0.22-100 | 0.3 | 3.2 | 0.75 | 900x600x1000 |
| YWCR-400 | 16 | 2 | φ400 | 0.22-100 | 0.3 | 5 | 1.1 | 1000x600x1000 |
| YWCR-400 | 20 | 2.5 | φ400 | 0.22-100 | 0.3 | 6.3 | 1.1 | 1100x600x1000 |
| YWCR-400 | 32 | 4 | φ400 | 0.22-100 | 0.3 | 10 | 1.5 | 1320x600x1000 |
| YWF-200 | 10 | 0.4 | 200*200 | 0.22-100 | 0.3 | 1 | 55 | 650x380x650 |
| YWF-300 | 10 | 0.9 | 300*300 | 0.22-100 | 0.3 | 2.2 | 0.55 | 700x500x800 |
| YWF-400 | 10 | 1.6 | 400*400 | 0.22-100 | 0.3 | 4 | 0.75 | 900x600x1000 |
| YWF-400 | 20 | 3 | 400*400 | 0.22-100 | 0.3 | 8 | 1.5 | 1100x600x1000 |
| YWF-400 | 26 | 4 | 400*400 | 0.22-100 | 0.3 | 10 | 1.5 | 1150x600x1000 |
| YWF-400 | 32 | 5 | 400*400 | 0.22-100 | 0.3 | 12.8 | 2.2 | 1200x600x1000 |
| YWF-400 | 38 | 6 | 400*400 | 0.22-100 | 0.3 | 15.2 | 3 | 1300x600x1000 |
| YWF-400 | 44 | 7 | 400*400 | 0.22-100 | 0.3 | 17.6 | 3 | 1350x600x1000 |
