high flow duplex filter housing Stainless Steel Recycled Rainwater Collection Impurity Removal

Stainless Steel Duplex Filter Is Recycled After Rainwater Collection And Impurity Removal

Production description

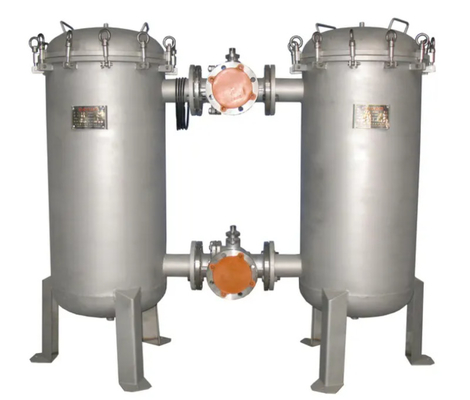

Duplex filter is also called duplex switching filter. It is composed of two stainless steel filters connected in parallel. Two three-way ball valves are used to assemble two simple filters on one base. There is no need to shut down when cleaning the filter to ensure its continuous operation. It is a continuous filtering equipment. The filter element of the filter can be filtered by bag filter, stainless steel filter element and carbon rod filter element. It can also be filtered by high-quality honeycomb degreasing fiber cotton. The filter can also be used simply. At this time, only the common base needs to be removed, and the other dimensions remain unchanged.

Application

1. Filtration of domestic water supply and production process water supply;

2. Ultrafiltration, reverse osmosis, softening, ion exchange and other pretreatment;

3. Sea water purification for Sea Treasures seedling raising; Filtration of industrial seawater and freshwater aquaculture water;

4. Oilfield reinjection water filtration;

5. Circulating cold water filtration;

6. Reclaimed water reuse, advanced wastewater treatment and filtration;

7. Circulating water filtration in iron and steel, petroleum, chemical industry, papermaking, automobile, food, metallurgy and other industries;

8. Turbidity removal and purification of groundwater and surface water;

9. Central air conditioning, boiler return water filtration;

10. Feed water filtration equipment with certain requirements for water quality;

11. Water purification of swimming pool and landscape;

12. Municipal and green space spraying and irrigation, agricultural sprinkler irrigation and drip irrigation water filtration.

Product features:

1. The duplex filter can operate continuously without shutdown;

2.The filter can be used for one standby and one for use. It can also be used at the same time to improve work efficiency;

3. Stainless steel duplex bag filter switchable bag filter has many advantages, such as reasonable structure, small floor area, good sealing, strong circulation capacity, simple operation and so on; 4. Stainless steel duplex bag filter can be switched. The combination of bag filter is diverse, including bag + bag, filter element + filter element, and other filtration systems. The probability of side leakage of filter bag or filter element is small, which can accurately ensure the filtration accuracy and quickly replace the filter bag, reducing the operation cost.

Specification

​​

​
