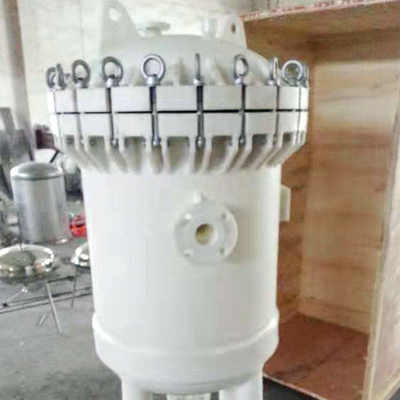

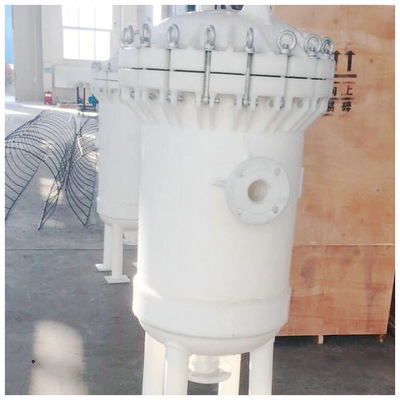

1 micron bag filter high temperature 10 inch 20 inch Fluid Coolant Plating Dehydration Flux Filtration

1 micron bag filter high temperature 10 inch 20 inch Fluid Coolant Plating Dehydration Flux Filtration
1 micron bag filter high temperature 10 inch 20 inch Fluid Coolant Plating Dehydration Flux Filtration 1 micron bag filter high temperature 10 inch 20 inch Fluid Coolant Plating Dehydration Flux Filtration

Large Image :  1 micron bag filter high temperature 10 inch 20 inch Fluid Coolant Plating Dehydration Flux Filtration

Product Details:
Place of Origin: CHINA
Brand Name: YW
Certification: CE, ISO
Model Number: YWDS
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD+500-10000+set
Packaging Details: wooden case, net for container
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, D/A, Western Union, MoneyGram
Supply Ability: 600+set+per month

1 micron bag filter high temperature 10 inch 20 inch Fluid Coolant Plating Dehydration Flux Filtration

Description
Product Name: Bag Filter Material: PP
Bag Qty: 1-35 Max Flow: 5-200t/h
Inlet/Outlet Dia: DN25-DN600 Working Pressure: 0.2-0.6Mpa
Filter Housing Type: Cylinder Warranty: 12 Month
Customer Customized: Support Colour: White/Green
Total Height: 1572-2500mm Application: Oil, Food,drinking Chemical Industry Etc
High Light:

20 inch bag filter

,

bag filter 10 inch

,

bag filter 20 inch

Polypropylene Plastic Bag Filter Cartridge Filter Fine Filter​



Product Description:
The bag filter has various feeding methods. The filtered liquid medium is pressed or drawn into the filter barrel through the pressure in the pipeline.
The liquid medium is filtered through the filter bag supported by the supporting filter basket, and the liquid can obtain a qualified filter when the liquid penetrates the filter bag of the required grade.
Liquid and magazine particles are intercepted, resulting in ideal solid-liquid separation to achieve the effect of liquid media being filtered. The machine is very convenient to replace the filter bag
, filtration is basically free of material consumption. The bag filter has many advantages such as reasonable structure, good sealing performance, strong flow capacity and easy operation.
point. In particular, the probability of side leakage of the filter bag is small, the filtration accuracy can be accurately guaranteed, and the filter bag can be replaced quickly, which reduces the operating cost.
. The inner and outer surfaces of the filter are mechanically sandblasted and polished, which is uniform and easy to clean. Filters can also be supplied with added
Filters in the form of shrink sleeves, adjustable support feet or hooks to suit different customers.



Filter operation and precautions:
The machine is easy to operate, just install the filter bag of the required precision grade in the filter cartridge, check whether the sealing ring is in good condition, and then
Tighten the ring bolt of the filter cartridge, and it can be put into work. After the pump is started, the pressure gauge on the filter rises slightly, and the initial pressure is about 0.05MPA
Left and right, with the extension of time, the filter residue in the filter bag gradually increases. When the pressure reaches 0.5MPA, stop the machine to open the lid and check the filter.
If there is slag left in the bag, the filter bag can be replaced and continued to be used (the filter bag can generally be reused by cleaning). filter pressure - generally 0.1-0.4MPA is more suitable, it can be adjusted through the return line or the return valve on the pump. If the filter pressure is too high, the filter bag and the protection will be damaged.
Net baskets require extra attention. (can be customized high pressure filter)



Specification:
Bag filter is divided into: single bag filter, multi-bag filter and insulation jacket filter. Multi-bag filter for large flow
Quantity and large slag storage are too much to worry about. From 2 bags to 24 bags, the specifications are complete, the diameter of the inlet and outlet flanges is DN25-
DN80-DN350 flange
And fast card, single machine flow 10- 600MP/H. Quick opening design is available, the filter bag is very convenient to replace, and it is also suitable for use after a long time.
When replacing the filter bag. Due to its large volume and heavy top cover, the multi-bag filter is difficult for a worker to operate.
The rocker arm device can reduce labor costs and meet customer requirements.



Filter Features
①High-precision filtration, wide filtration area, easy to clean
wash.
②Suitable for electroplating solution, chemical solution, pure water circulation
Ring filtration, etc.
③Customers can choose different filter materials: filter element type
Filter bag type, filter paper type.
④Another titanium beam ring group is available.
⑤ The filter has less welding and no leakage.





Application



Application: paint,beer,sugar water, resin,ink,Juice, milk, latex, wax, Edible oil, mineral water, vegetable oil, electroplating solution, hot melt, etc.



Specification

Models No. of filter bags Filtration Area(㎡) Flow rate (m³/h) I/O Connections Max pressure (Mpa) Housing Diameter(mm) Total Height(mm) Housing Height(mm) Center Distance of Foundation Bolts(mm)
DL-2P2S 2 1 70 DN50 0.5 456 1572 1144 616
DL-3P2S 3 1.5 105 DN80 0.5 508 1592 1190 668
DL-4P2S 4 2 140 DN100 0.5 558 1632 1244 718
DL-5P2S 5 2.5 175 DN150 0.5 608 1788 1254 768
DL-6P2S 6 3 210 DN150 0.5 658 1854 1300 818
DL-7P2S 7 3.5 215 DN150 0.5 710 1875 1340 870
DL-8P2S 8 4 280 DN150 0.5 760 1922 1404 920
DL-10P2S 10 5 350 DN200 0.5 910 2004 1430 1070
DL-12P2S 12 6 420 DN200 0.5 962 2064 1460 1132
DL-14P2S 14 7 490 DN200 0.5 1012 2124 1490 1212
DL-16P2S 16 8 560 DN250 0.5 1112 2146 1512 1312
DL-18P2S 18 9 630 DN250 0.5 1162 2225 1595 1362
DL-20P2S 20 10 700 DN250 0.5 1212 2280 1640 1412
DL-22P2S 22 11 770 DN250 0.5 1366 2320 1694 1516
DL-24P2S 24 12 840 DN300 0.5 1416 2358 1748 1616

1 micron bag filter high temperature 10 inch 20 inch Fluid Coolant Plating Dehydration Flux Filtration 0
