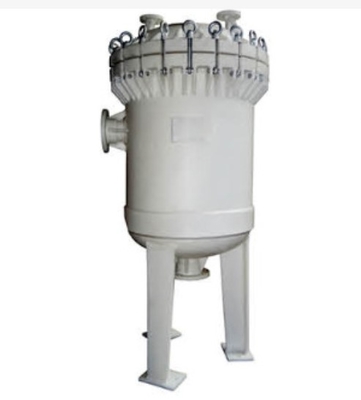

Plastic Polypropylene Bag Filter Housing Industrial Electroplating Chemical Liquid

Basic Information
Place of Origin: CHINA
Brand Name: YW
Certification: CE, ISO
Model Number: YWDS
Minimum Order Quantity: 1
Price: USD+500-10000+set
Packaging Details: wooden case, net for container
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, D/A, Western Union, MoneyGram
Supply Ability: 600+set+per month
Detail Information
Product Name: Bag Filter Material: PP
Bag Qty: 1-35 Max Flow: 5-200t/h
Inlet/Outlet Dia: DN25-DN600 Working Pressure: 0.2-0.6Mpa
Filter Housing Type: Cylinder Warranty: 12 Month
Customer Customized: Support Colour: White/Green
Total Height: 1572-2500mm Application: Oil, Food,drinking Chemical Industry Etc
High Light:

plastic bag filter housing

,

Polypropylene Bag Filter Housing Industrial

,

plastic polypropylene bag filter housing


Product Description

Customized Bag Filter Yuwei Acid And Alkali Resistant Precision Electroplating Chemical Liquid Pp Plastic Bag Filter



Yuwei environmental protection plastic filter is 100% made of PP (polypropylene)/PE material. With the excellent chemical properties of PP material,
Yuwei plastic filter can meet the filtration application of many chemical acid and alkali solutions. One-shot injection-molded casing, no contact, no dead angle,
The grid is accurate; it is a high-quality, high-efficiency, economical and practical excellent product. PP (polypropylene) bag filter features
The inner surface of the smooth filter housing has no grooves, no dead ends, and is easy to clean;



Advantages



Compact structure and small size
Easy operation and maintenance
Large processing capacity
Outlet connection choices are bottom, side or loop
Long span life very durable
Filtration precision can reach 0.5 microns
Cost-effective price



Application



Automotive
Food and Beverage
Chemical Processing
Paints, Inks, Resins and Coatings
Electronics
Petrochemicals
Municipal Water Treatment
Industrial Water Treatment
Pulp and Paper
Pharmaceutical
Lubricants, Metalworking Fluids




Specification

Models No. of filter bags Filtration Area(㎡) Flow rate (m³/h) I/O Connections Max pressure (Mpa) Housing Diameter(mm) Total Height(mm) Housing Height(mm) Center Distance of Foundation Bolts(mm)
DL-2P2S 2 1 70 DN50 0.5 456 1572 1144 616
DL-3P2S 3 1.5 105 DN80 0.5 508 1592 1190 668
DL-4P2S 4 2 140 DN100 0.5 558 1632 1244 718
DL-5P2S 5 2.5 175 DN150 0.5 608 1788 1254 768
DL-6P2S 6 3 210 DN150 0.5 658 1854 1300 818
DL-7P2S 7 3.5 215 DN150 0.5 710 1875 1340 870
DL-8P2S 8 4 280 DN150 0.5 760 1922 1404 920
DL-10P2S 10 5 350 DN200 0.5 910 2004 1430 1070
DL-12P2S 12 6 420 DN200 0.5 962 2064 1460 1132
DL-14P2S 14 7 490 DN200 0.5 1012 2124 1490 1212
DL-16P2S 16 8 560 DN250 0.5 1112 2146 1512 1312
DL-18P2S 18 9 630 DN250 0.5 1162 2225 1595 1362
DL-20P2S 20 10 700 DN250 0.5 1212 2280 1640 1412
DL-22P2S 22 11 770 DN250 0.5 1366 2320 1694 1516
DL-24P2S 24 12 840 DN300 0.5 1416 2358 1748 1616

Plastic Polypropylene Bag Filter Housing Industrial Electroplating Chemical Liquid 0
