800mm 1000mm Lab Chamber Filter Press Wastewater Treatment Large Capacity

Basic Information
Place of Origin: China
Brand Name: Yuwei
Certification: CE / ISO / FDA
Model Number: YWXMZ
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Bubble Wrap/ Wooden Case
Delivery Time: 15-20 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 500 Unit per Month
Detail Information
Name: Chamber Filter Press Material: Carbon Steel
Beam: Iron Coating Q235 Voltage: Customized
Plate Shiting: Automatic Filter Plate Size: 1000mm
Closing Method: Hydralic Control: PLC
Stream: Open Feeding Pressure: 0.6Mpa
High Light:

800mm filter press

,

lab filter press

,

Chamber filter press wastewater treatment


Product Description

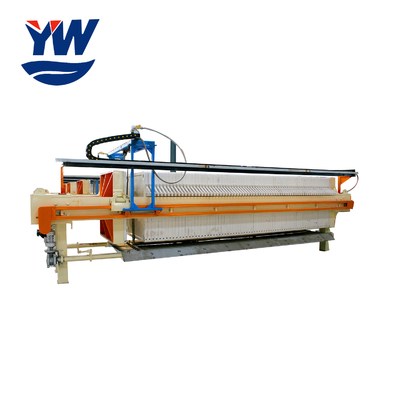

Program Controlled Auto 1500 Chamber Filter Press with Large Capacity



Advantages of LEABON Membrane Filter Press:

1. Low cake moisture;

2. Unmanned operation and cost saving;

3. Resist high temperature and corrosion;

4. Good sealing effect can perfectly avoid leskage;

5. Can realize twice squeezing (first squeeze by filter press, second squeeze by air or water).



Model Filter Area Plate size Cake thickness Filter chamber volume Plate NO Filtration pressure Motor power Weight Dimensions L*W*H(mm) Foundation Size(mm)
L B D H
X_M^AZ30/870−30U_K^B 30 870*870 30 460 23 0.6 2.2 2680 3180*1400*1230 2360 700 1380 785
X_M^AZ40/870−30U_K^B 40 595 30 3050 3570*1400*1230 2750
X_M^AZ50/870−30U_K^B 50 748 38 3456 4110*1400*1230 3290
X_M^AZ60/870−30U_K^B 60 902 46 4003 4550*1400*1230 3730
X_M^AZ70/870−30U_K^B 70 1056 54 4584 4990*1400*1230 4170
X_M^AZ80/870−30U_K^B 80 1210 62 5082 5430*1400*1230 4610
X_M^AZ50/870−30U_K^B 50 1000*1000 30 736 28 ≥0.6 4 4128 4040*1500*1400 3120 780 1480 870
X_M^AZ60/870−30U_K^B 60 889 34 4636 4460*1500*1400 3480
X_M^AZ70/870−30U_K^B 70 1041 40 5143 4760*1500*1400 3840
X_M^AZ80/870−30U_K^B 80 1193 46 5651 5120*1500*1400 4200
X_M^AZ100/870−30U_K^B 100 1475 57 6628 5780*1500*1400 4860
X_M^AZ120/870−30U_K^B 120 1777 69 7644 6500*1500*1400 5580
X_M^AZ100/1250−30U_K^B 100 1250*1250 30 1468 36 ≥0.6 4 8307 5020*1800*1600 3970 850 1740 995
X_M^AZ120/1250−30U_K^B 120 1746 43 9308 5470*1800*1600 4430
X_M^AZ140/1250−30U_K^B 140 2063 51 10455 5990*1800*1600 4950
X_M^AZ160/1250−30U_K^B 160 2341 58 11492 6450*1800*1600 5400
X_M^AZ180/1250−30U_K^B 180 2619 65 12494 6905*1800*1600 5860
X_M^AZ200/1250−30U_K^B 200 2896 72 13504 7360*1800*1600 6310
X_M^AZ220/1250−30U_K^B 220 3214 80 14652 7880*1800*1600 6830
X_M^AZ250/1250−30U_K^B 250 3650 91 16227 8600*1800*1600 7550
X_M^AZ200/1500−35U_K^B 200 1500*1500 35 2998 49 ≥0.6 7.5 20030 6400*2200*1900 5250 1170 1990 1070
X_M^AZ250/1500−35U_K^B 250 3594 61 22978 7225*2200*1900 6090
X_M^AZ300/1500−35U_K^B 300 4347 74 26026 8130*2200*1900 6990
X_M^AZ350/1500−35U_K^B 350 5043 86 29220 8950*2200*1900 7840
X_M^AZ400/1500−35U_K^B 400 5796 99 32574 9880*2200*1900 8750
X_M^AZ450/1500−35U_K^B 450 6492 111 35586 10690*2200*1900 9590
X_M^AZ500/1500−35U_K^B 500 7187 123 38606 11560*2200*1900 10430
X_M^AZ600/2000−40U_K^B 600 2000*2000 40 8926 85 ≥0.6 15 49000 11100*3000*2500 9200 1660 2000 1050
X_M^AZ700/2000−40U_K^B 700 10380 99 53000 12200*3000*2500 10300
X_M^AZ800/2000−40U_K^B 800 11210 107 57000 13350*3000*2500 11450
X_M^AZ900/2000−40U_K^B 900 13290 127 61000 14500*3000*2500 12600
X_M^AZ1000/2000−40U_K^B 1000 14740 141 65000 15600*3000*2500 15600





We have professional team in sludge filteration which have many research staffs who have devoted themselves to the industry for more than 20 years, and our High-Efficiency Circular Filter Press for Sludge ?are saled all over the world.

1),Long history : our factory established in 1988,and we are the leading enterprise in filter press industry .

2),we are one of the main constitutor of press filter regulations.

3),we are a professional team which have many research staffs who have devoted themselves to the industry for more than 20 years.

4),We offer different material's filter plate according to different industry , while other providers couldn't make it .

5), Our products are sold to many companies which most of them are top500 . eg , East hope company .

6),We manufacture the filter plate ourselves , so we could guarantee its quality ,while other providers buy it from others .
