Chamber Plate Filter Press Dewatering Wine Clay Ceramic Corrosion Resistant

Basic Information
Place of Origin: China
Brand Name: Yuwei
Certification: CE / ISO / FDA
Model Number: YWXMZ
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Bubble Wrap/ Wooden Case
Delivery Time: 15-20 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 500 Unit per Month
Detail Information
Name: Chamber Filter Press Material: Carbon Steel
Beam: PP Coating Power: 380V/50Hz/3PHS
Plate Shiting: Auto Filter Plate Material: PP
Closing Method: Hydralic Control: Automatic
Drip Tray: Optional Conveyor: Optional
High Light:

Chamber Plate Filter Press Dewatering

,

clay filter press

,

plate type filter press


Product Description

PP Coating Corrosion-Resistant Chamber Filter Press For Strong Acid Chemical Industry​



The working principle of the filter press is: the filter plate is compressed by the oil cylinder, and the filter chamber is sealed by the stroke between the filter plates. Feed into the filter chamber, the solids remain in the filter chamber, and the liquid flows between the filter cloth and the filter plate through the filter cloth, and is discharged along the diversion groove on the filter plate.



The moisture content of the mud cake obtained by pressure filtration is related to the dehydration performance of the material itself, the feeding time, the water permeability of the filter cloth, and the pressure of the filter press.



The main difference between a chamber filter press and a plate and frame filter press is the structure of the filter plate. The plate and frame filter press is arranged with one plate and one frame at intervals, and the space in the frame after the filter press is compressed serves as a filter chamber for forming a filter cake. The filter plate of the chamber filter press is equivalent to combining one plate and one frame into a whole plate with a concave space, and the filter cake is formed in the concave part.



The chamber filter plate has the advantages of not easy deformation and high production efficiency, but it is not as easy to replace the filter cloth as the plate and frame filter plate. The advantage of the plate-and-frame filter plate is that it is easy to replace the filter cloth, which is suitable for customers who need to frequently disassemble the filter cloth for cleaning or replacement, but the plate-and-frame filter frame is easy to deform.

The two types of filter presses have their own characteristics in actual production and should be selected according to the actual needs of customers.





Model Filter Area Plate size Cake thickness Filter chamber volume Plate NO Filtration pressure Motor power Weight Dimensions L*W*H(mm) Foundation Size(mm)
L B D H
X_M^AZ30/870−30U_K^B 30 870*870 30 460 23 0.6 2.2 2680 3180*1400*1230 2360 700 1380 785
X_M^AZ40/870−30U_K^B 40 595 30 3050 3570*1400*1230 2750
X_M^AZ50/870−30U_K^B 50 748 38 3456 4110*1400*1230 3290
X_M^AZ60/870−30U_K^B 60 902 46 4003 4550*1400*1230 3730
X_M^AZ70/870−30U_K^B 70 1056 54 4584 4990*1400*1230 4170
X_M^AZ80/870−30U_K^B 80 1210 62 5082 5430*1400*1230 4610
X_M^AZ50/870−30U_K^B 50 1000*1000 30 736 28 ≥0.6 4 4128 4040*1500*1400 3120 780 1480 870
X_M^AZ60/870−30U_K^B 60 889 34 4636 4460*1500*1400 3480
X_M^AZ70/870−30U_K^B 70 1041 40 5143 4760*1500*1400 3840
X_M^AZ80/870−30U_K^B 80 1193 46 5651 5120*1500*1400 4200
X_M^AZ100/870−30U_K^B 100 1475 57 6628 5780*1500*1400 4860
X_M^AZ120/870−30U_K^B 120 1777 69 7644 6500*1500*1400 5580
X_M^AZ100/1250−30U_K^B 100 1250*1250 30 1468 36 ≥0.6 4 8307 5020*1800*1600 3970 850 1740 995
X_M^AZ120/1250−30U_K^B 120 1746 43 9308 5470*1800*1600 4430
X_M^AZ140/1250−30U_K^B 140 2063 51 10455 5990*1800*1600 4950
X_M^AZ160/1250−30U_K^B 160 2341 58 11492 6450*1800*1600 5400
X_M^AZ180/1250−30U_K^B 180 2619 65 12494 6905*1800*1600 5860
X_M^AZ200/1250−30U_K^B 200 2896 72 13504 7360*1800*1600 6310
X_M^AZ220/1250−30U_K^B 220 3214 80 14652 7880*1800*1600 6830
X_M^AZ250/1250−30U_K^B 250 3650 91 16227 8600*1800*1600 7550
X_M^AZ200/1500−35U_K^B 200 1500*1500 35 2998 49 ≥0.6 7.5 20030 6400*2200*1900 5250 1170 1990 1070
X_M^AZ250/1500−35U_K^B 250 3594 61 22978 7225*2200*1900 6090
X_M^AZ300/1500−35U_K^B 300 4347 74 26026 8130*2200*1900 6990
X_M^AZ350/1500−35U_K^B 350 5043 86 29220 8950*2200*1900 7840
X_M^AZ400/1500−35U_K^B 400 5796 99 32574 9880*2200*1900 8750
X_M^AZ450/1500−35U_K^B 450 6492 111 35586 10690*2200*1900 9590
X_M^AZ500/1500−35U_K^B 500 7187 123 38606 11560*2200*1900 10430
X_M^AZ600/2000−40U_K^B 600 2000*2000 40 8926 85 ≥0.6 15 49000 11100*3000*2500 9200 1660 2000 1050
X_M^AZ700/2000−40U_K^B 700 10380 99 53000 12200*3000*2500 10300
X_M^AZ800/2000−40U_K^B 800 11210 107 57000 13350*3000*2500 11450
X_M^AZ900/2000−40U_K^B 900 13290 127 61000 14500*3000*2500 12600
X_M^AZ1000/2000−40U_K^B 1000 14740 141 65000 15600*3000*2500 15600





Technical Features

  • Inverter motor pull plate;
  • Automatic control system: The control adopts three major brands, Omron, Siemens and Schneider products to realize automatic control of the whole process;
  • The hydraulic system runs smoothly and reliably: the hydraulic components are made of high-quality products; the integrated block is processed by the machining center; the fuel tank is produced by the manufacturing process;
  • The main beam adopts H-shaped box structure, which has good structure and anti-side bending, which completely solves the problem of bending of the main beam. Diaphragm pressing, which is as large as 25kg, reduces the moisture content of the filter cake after pressing to less than 20%; the thickness of the filter cake is 45mm , increasing the volume of the filter chamber and the processing capacity of a single unit.



Industry

It is widely used in the production process of various industrial industries such as chemical, petroleum, pharmaceutical, sugar, metallurgy, food, ceramics, starch, etc. and the purification of various industrial wastewater and domestic sewage.

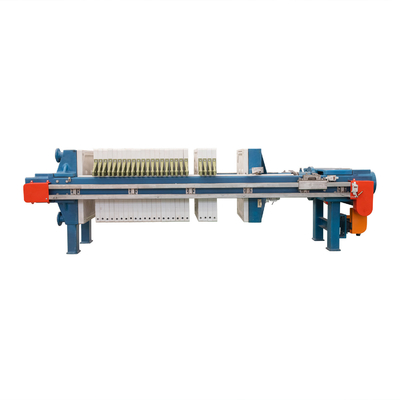

Chamber Plate Filter Press Dewatering Wine Clay Ceramic Corrosion Resistant 0

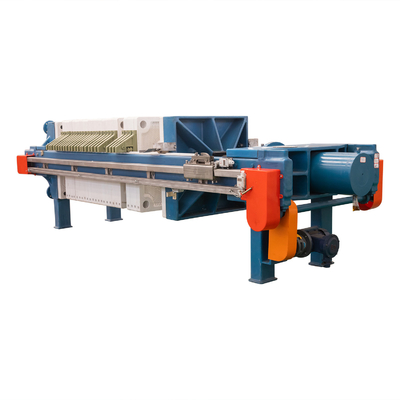

Chamber Plate Filter Press Dewatering Wine Clay Ceramic Corrosion Resistant 1
