Product Details:
|
| Product Namee: | Cartridge Filter | Material: | SS304, SS316L,PP, Carbon Steel |
|---|---|---|---|
| Capacity: | 10-300 GPM | Cartridge Length: | 10-40" |
| Inlet/Outlet Dia: | DN25-DN600 | Surface: | Mirror, Blasted |
| Working Pressure: | 0.2-0.6 MPa | O-rings: | Silicone |
| Usage: | Juice, Food Oil, Water, Beer Etc | Warranty: | 1 Year |
| Filter Housing Cartridge: | PP/SS304/SS316L | ||
| High Light: | single cartridge filter housing stainless steel,cartridge filter housing plastic,cartridge filter housing polypropylene |
||
Introduction
Yuwei cartridge filter housing consists of housing and cartridge. Normally the housing is made of stainless steel. The media of filtration is the cartridge, which is made from various materials. Usually, it includes polypropylene cartridge, string wound cartridge, PP folded cartridge etc. Which kind of cartridges should be selected depends on the liquid. The precision of filtration ranges from 0.1 to 60μm. The size of the cartridge includes 10 inches,20 inches,30 inches,40 inches. The liquid enters the housing from the inlet, going through the filter cartridge. Then the liquid is evenly filtered by the cartridge under the pressure from the pump. The impurities will be trapped inside the cartridge. And the filtration process is completed.
Working Principle
The liquid will be fed into the filter from the inlet, then go to through the cartridge from external side to inner side, then discharge from outlet. While the filtering, impurities will be trapped by the cartridge, so that realize filtering effect.
Features

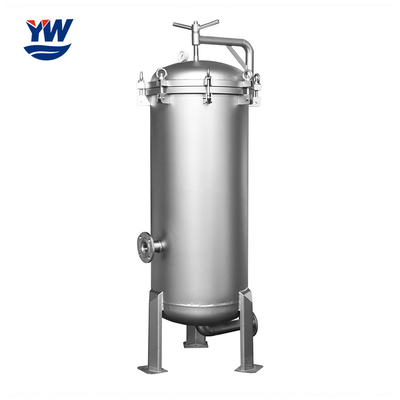

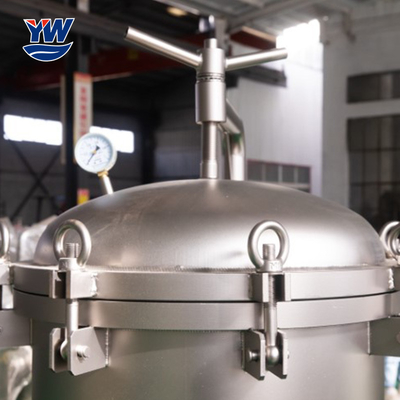

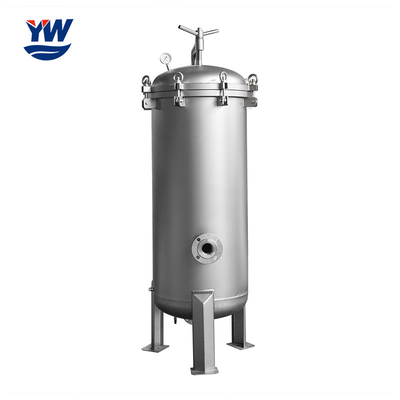

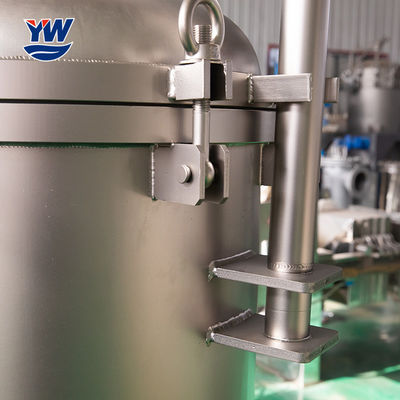

Product Display
Specification
| Model | Flow in theory(T/H) | Housing diameter(mm) | Height (mm) | Inlet/Outlet (DN) |
| YWLX10-1 | 0.1-0.3 | 102 | 500 | 25-32 |
| YWLX20-1 | 0.3-0.5 | 102 | 750 | 25-32 |
| YWLX30-1 | 1.2 | 102 | 1000 | 25-32 |
| YWLX40-1 | 1.5 | 102 | 1250 | 25-32 |
| YWLX10-3 | 1.2 | 160 | 650 | 25-40 |
| YWLX20-3 | 1.5 | 160 | 900 | 25-40 |
| YWLX30-3 | 3.6 | 160 | 1150 | 25-40 |
| YWLX40-3 | 4.5 | 160 | 1400 | 25-40 |
| YWLX20-5 | 2.5 | 200 | 900 | 25-50 |
| YWLX30-5 | 6 | 200 | 1150 | 25-50 |
| YWLX40-5 | 7.5 | 200 | 1400 | 25-50 |
| YWLX20-7 | 3.5 | 230 | 900 | 25-50 |
| YWLX30-7 | 8.4 | 230 | 1150 | 25-50 |
| YWLX40-7 | 10.5 | 230 | 1400 | 25-50 |
| YWLX20-9 | 4.5 | 300 | 900 | 25-50 |
| YWLX30-9 | 10.8 | 300 | 1150 | 25-50 |
| YWLX40-9 | 13.5 | 300 | 1400 | 25-50 |
| YWLX20-12 | 6 | 300 | 900 | 25-50 |
| YWLX30-12 | 14.4 | 300 | 1150 | 25-50 |
| YWLX40-12 | 18 | 300 | 1400 | 25-50 |
| YWLX20-15 | 7.5 | 350 | 900 | 25-65 |
| YWLX30-15 | 18 | 350 | 1150 | 25-65 |
| YWLX40-15 | 22.5 | 350 | 1400 | 25-65 |
| YWLX30-20 | 24 | 400 | 1150 | 25-65 |
| YWLX40-20 | 30 | 400 | 1400 | 25-65 |
| YWLX30-25 | 30 | 450 | 1150 | 50-80 |
| YWLX40-25 | 37.5 | 450 | 1400 | 50-80 |
| YWLX30-30 | 36 | 500 | 1500 | 50-80 |
| YWLX40-30 | 45 | 500 | 1750 | 50-80 |
| YWLX30-35 | 42 | 550 | 1500 | 50-100 |
| YWLX40-35 | 52.5 | 550 | 1750 | 50-100 |
| YWLX30-40 | 48 | 600 | 1500 | 50-100 |
| YWLX40-40 | 60 | 600 | 1750 | 50-100 |
| YWLX40-60 | 90 | 700 | 1750 | 50-100 |
| YWLX40-80 | 120 | 800 | 1750 | 50-100 |
| YWLX40-100 | 150 | 900 | 1750 | 50-125 |
Applications
Cartridge filter housing is widely used in water treatment, chemical industry, pharmacy, wine industry, food industry, electronic industry, biochemical industry, environment Industry etc.
