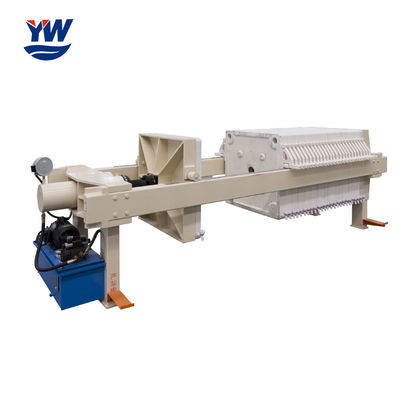

Sludge Dewatering Chamber Filter Press Wastewater Treatment Plant

Sludge Dewatering Chamber Filter Press Wastewater Treatment Plant
Sludge Dewatering Chamber Filter Press Wastewater Treatment Plant Sludge Dewatering Chamber Filter Press Wastewater Treatment Plant Sludge Dewatering Chamber Filter Press Wastewater Treatment Plant Sludge Dewatering Chamber Filter Press Wastewater Treatment Plant Sludge Dewatering Chamber Filter Press Wastewater Treatment Plant

Large Image :  Sludge Dewatering Chamber Filter Press Wastewater Treatment Plant

Product Details:
Place of Origin: China
Brand Name: Yuwei
Certification: CE / ISO / FDA
Model Number: YW1H
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Bubble Wrap/ Wooden Case
Delivery Time: 5-8 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 Unit per Month

Sludge Dewatering Chamber Filter Press Wastewater Treatment Plant

Description
Structure: Cantilever Beam Type Filter Material:: PE
Pressure: Hydraulic Pressure Type: Chamber Filter Press
FiItration Pressure: ≥0.6 MPa Motor Power: 4KW
High Light:

Sludge Dewatering Chamber Filter Press

,

Wastewater Treatment Chamber Filter Press

,

Chamber sludge dewatering filter press

Introduction

Candle Type Filter
Candle Type Filter
Candle Type Filter
Candle Type Filter

Chamber filter press is a kind of equipment which widely used for solid-liquid separation. Program controlled automatic chamber filter press can use microcomputer processor, PLC and touch screen for various operations, such as: pressing plate, open/close drip tray, loosen and pull the filter plate, cloth washing, etc and can remote automatic operation control.

High efficiency and energy-saving filter press based on the automatic plate pulling, add the manipulator, lengthen the oil cylinder, can discharged several cakes at one time, the cake discharging efficiency is increased by 3-6 times.

Features

  1. Lower filter cake moisture;
  2. Feeding pressure 0.6-1.2MPa;
  3. Hydraulic compressing, automatic maintaining pressure;
  4. Welded steel structure;
  5. Automatic cake discharging;
  6. Frame and beam made of high quality carbon steel;
  7. Plate made of reinforced polypropylene;
  8. Relay control system.

Application

Petrochemical

Petrochemical

Oil

Oil

Ceramics

Ceramics

Program controlled automatic chamber/recessed filter press is widely used for solid-liquid separation in petrochemical, metallurgy (gold, silver, copper, iron, zinc, rare earth, etc.), oil (light oil, glycerin, machine oil, vegetable oil, etc.), ceramics (bentonite, activated clay, china clay, etc.) and other industries.

Specification

Model Filter Area Plate size Filter chamber volume Plate NO Filtration pressure Motor power Dimensions L*W*H(mm)
XMZ30/870−30U 30 870*870 460 23 0.6 2.2 3180*1400*1230
XMZ40/870−30U 40 595 30 3570*1400*1230
XMZ50/870−30U 50 748 38 4110*1400*1230
XMZ60/870−30U 60 902 46 4550*1400*1230
XMZ70/870−30U 70 1056 54 4990*1400*1230
XMZ80/870−30U 80 1210 62 5430*1400*1230
XMZ50/870−30U 50 1000*1000 736 28 ≥0.6 4 4040*1500*1400
XMZ60/870−30U 60 889 34 4460*1500*1400
XMZ70/870−30U 70 1041 40 4760*1500*1400
XMZ80/870−30U 80 1193 46 5120*1500*1400
XMZ100/870−30U 100 1475 57 5780*1500*1400
XMZ120/870−30U 120 1777 69 6500*1500*1400
XMZ100/1250−30U 100 1250*1250 1468 36 ≥0.6 4 5020*1800*1600
XMZ120/1250−30U 120 1746 43 5470*1800*1600
XMZ140/1250−30U 140 2063 51 5990*1800*1600
XMZ160/1250−30U 160 2341 58 6450*1800*1600
XMZ180/1250−30U 180 2619 65 6905*1800*1600
XMZ200/1250−30U 200 2896 72 7360*1800*1600
XMZ220/1250−30U 220 3214 80 7880*1800*1600
XMZ250/1250−30U 250 3650 91 8600*1800*1600

Accessories

Candle Type Filter
Candle Type Filter
Candle Type Filter
