Membrane Plate Filter Press For Clay High Pressure Portable Small Test SS304

Basic Information
Place of Origin: China
Brand Name: Yuwei
Certification: CE / ISO
Model Number: YWGMZ
Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: wooden case, bubble wrap
Delivery Time: 10-20 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 500 units per month
Detail Information
Name: Membrane Filter Press Material: Carbon Steel
Feed Pressure: 0.8 MPa Squeezing Pressure: 1.2 Mpa
Plate Material: PP Power: 380v/50hz
Closing Method: Hydralic Filter Cloth: 200-800 Mesh
Color: Grey/White/Blue
High Light:

membrane plate filter press for clay

,

Membrane Plate Filter Press SS304

,

Portable Filter Press


Product Description

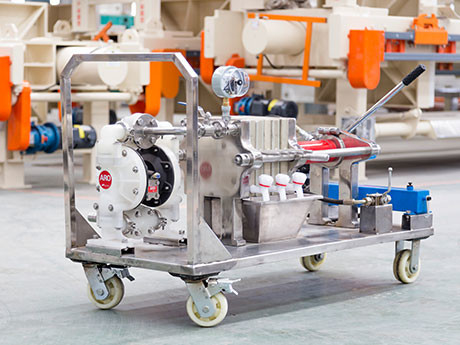

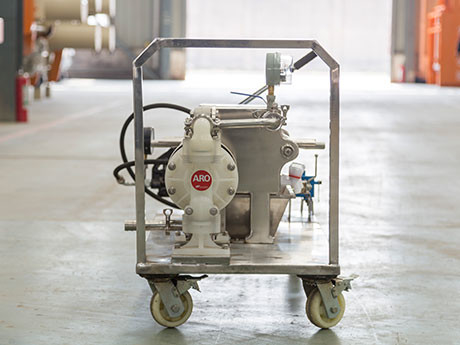

Portable Small Test High Pressure Membrane Filter Press For Experimental Filter Press



It is integrated design, free of installation.
1) small filter plate, suitable for testing a small amount of materials.
2) It is easy to move and it is very convenience.
3) High efficiency filtration.
4) Use of special filter cloths corresponding to the application for a meaningful filtration result
5) Supply unit with feed pump, manual hydraulic closing and complete piping system for easy and fast operation

Advantages:

1. specially developed for test filtration and laboratory analyses
2. integrated design, easy to move

Applications:

Sludge dewatering for lab test or projects with small capacity.




Working principle
The suspension is pumped into each closed filter chamber of the filter machine. Under the action of the working pressure, the filtrate penetrates the filter membrane or other filter materials, and is discharged through the liquid outlet, and the filter residue remains in the frame to form a filter cake, so as to achieve Solid-liquid separation.

Scope of application
Membrane filter press is used for solid-liquid separation of various suspensions, and has a wide range of applications. It is suitable for industrial fields such as medicine, food, chemical industry, environmental protection, and water treatment.



Model Filter area Plate Number Feed pressure Close pressure Chamber volume Weight Dimension Body Material Filter-press Plates
XMSG0.32/250-U 0.32m2 3+1+1 0.6MPa 15MPa 4.8L 200kg L 1270mm W 560mm H 817mm SS304 Polyethylene
XMSG0.35/250-U 0.32m2 5+1+1 0.6MPa 18Mpa 6L 260kg 1300mm 850mm 850mm SS304 Polyethylene


Membrane Plate Filter Press For Clay High Pressure Portable Small Test SS304 0
