Product Details:
|
| Name: | Chamber Filter Press | Material: | Carbon Steel |
|---|---|---|---|
| Beam: | PP Coating Q235 | Type: | Chamber |
| Plate Shiting: | Automatic | Filter Plate Material: | PP |
| Closing Method: | Hydralic | Control: | Manual |
| Brand: | Yuwei | Feed Pressure: | 0.6 Mpa |
| High Light: | cold press oil filter machine,Coconut oil filter press machine,filter press machine for oil |
||

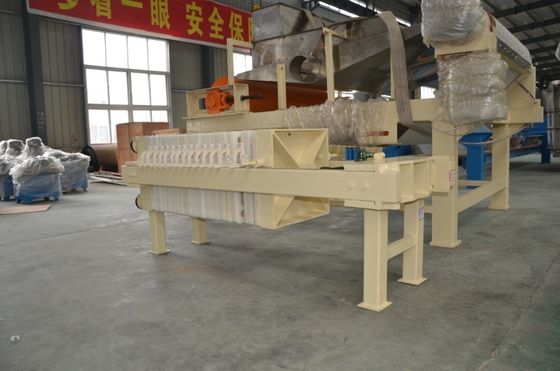

Yuwei Automatic Plate And Frame Filter Press For Edible Oil Food Industry
The plate and frame filter press is the first machine used in chemical dehydration. Although the plate and frame filter press is generally operated intermittently, the investment in infrastructure equipment is large, and the filtration capacity is also low, due to its large filtration driving force, high solid content of the filter cake, clear filtrate, high solid recovery rate, and conditioning drugs Due to the advantages of less consumption, it is still widely used in some small sewage plants.
| Model | Filter press | Plate size | Cake thickness | Filter chamber volume | Plate NO | Number frame | Filtration pressure | Motor power | Weight | Dimensions L*W*H(mm) | Foundation Size(mm) | ||||
| L | B | D | H | C | |||||||||||
| B_M^AY4/450−30U_K^B | 4 | 500*500 | 30 | 60 | 9 | 10 | ≤0.5 | 2.2 | 860 | 2080*800*900 | 1570 | 390 | 800 | 560 | 450 |
| B_M^AY6/450−30U_K^B | 6 | 91 | 14 | 15 | 910 | 2380*800*900 | 1870 | ||||||||
| B_M^AY8/450−30U_K^B | 8 | 121 | 19 | 20 | 960 | 2680*800*900 | 2170 | ||||||||
| B_M^AY10/450−30U_K^B | 10 | 151 | 24 | 25 | 1010 | 2980*800*900 | 2470 | ||||||||
| B_M^AY12/450−30U_K^B | 12 | 182 | 29 | 30 | 1060 | 3280*800*900 | 2770 | ||||||||
| B_M^AY15/450−30U_K^B | 15 | 225 | 36 | 37 | 1130 | 3700*800*900 | 3190 | ||||||||
| B_M^AY16/450−30U_K^B | 16 | 243 | 39 | 40 | 1160 | 3880*800*900 | 3370 | ||||||||
| B_M^AY15/630−30U_K^B | 15 | 700*700 | 30 | 226 | 18 | 19 | ≤0.5 | 2.2 | 1725 | 2840*1000*1100 | 2170 | 560 | 1110 | 700 | 485 |
| B_M^AY20/630−30U_K^B | 20 | 297 | 24 | 25 | 1993 | 3200*1000*1100 | 2530 | ||||||||
| B_M^AY30/630−30U_K^B | 30 | 452 | 37 | 38 | 2360 | 3980*1000*1100 | 3310 | ||||||||
| B_M^AY40/630−30U_K^B | 40 | 595 | 49 | 50 | 2788 | 4800*1000*1100 | 4130 | ||||||||
| B_M^AY30/890−35U_K^B | 30 | 890*890 | 35 | 524 | 23 | 24 | ≤0.5 | 2.2 | 2580 | 3740*1385*1300 | 2750 | 700 | 1270 | 759 | 480 |
| B_M^AY40/890−35U_K^B | 40 | 677 | 30 | 31 | 2925 | 4220*1385*1300 | 3240 | ||||||||
| B_M^AY50/890−35U_K^B | 50 | 852 | 38 | 39 | 3318 | 4880*1385*1300 | 3890 | ||||||||
| B_M^AY60/890−35U_K^B | 60 | 1027 | 46 | 47 | 3712 | 5440*1385*1300 | 4450 | ||||||||
| B_M^AY70/890−35U_K^B | 70 | 1201 | 54 | 55 | 4106 | 6000*1385*1300 | 5010 | ||||||||
| B_M^AY80/890−35U_K^B | 80 | 1376 | 62 | 63 | 4561 | 6560*1385*1300 | 5570 | ||||||||
Product structure and features:
1)For the plate frame filter press, the hollow frames are put between two plates to form a filter chamber. Generally, for the filter presses, the filter medium is the filter cloth. But for the plate frame filter press, the filter plate is flat, so besides the filter cloth, it can also use the filter paper to realize fine filtration or even ultra-filtration.
2)The plate frame filter press cannot bear the higher filtering pressure, because of no supporting points as chamber filter plates. And it only can discharge cakes manually, so the model normally is not very big. The max filter plate size is 1m. It's mainly for the laboratory and fine chemical industries.
3) Our plate frame filter press has various closing types: manual jack, manual hydraulic, electrical hydraulic etc.. And plate frame material can be customized according to your material demands, such as: PP, stainless steel or the cast iron materials. Please contact us for more info on plate filter presses so that to get most suitable offer.
Industry
It is widely used in the production process of various industrial industries such as chemical, petroleum, pharmaceutical, sugar, metallurgy, food, ceramics, starch, etc. and the purification of various industrial wastewater and domestic sewage.
