Vertical High Flow Filter Housing 3 Inch 2 Inch Stainless Steel Strainer Basket Industrial

Basic Information
Place of Origin: Yuzhou city , Henan province, China
Brand Name: Yuwei
Certification: CE,ISO
Model Number: YWDTL-1
Minimum Order Quantity: 1
Price: USD+800-10000+set
Packaging Details: wooden case
Delivery Time: 15 days
Payment Terms: T/T, Western Union, T/T, D/P, D/A, L/C
Supply Ability: 500+set+per month
Detail Information
Product Name: Basket Filter Material: SS304/316L
Working Pressure: 1.6 Mpa Filtering Precision: 1um
Diameter: 30-350 Mm Inlet/Outlet Dia: DN50-600
Warranty: 1 Year Package: Wooden Case/bubble Wrape
High Light:

2 inch basket filter

,

3 inch basket filter

,

stainless filter basket


Product Description

304 Straight-Through Sewage Pipeline Basket Filter SBL-25C Quick Opening Blue Filter DN100​



The inside of the filter shell is mainly composed of coarse filter screen, fine filter screen, suction pipe, stainless steel brush or stainless steel suction nozzle, sealing ring, anti-corrosion coating, rotating shaft, etc.

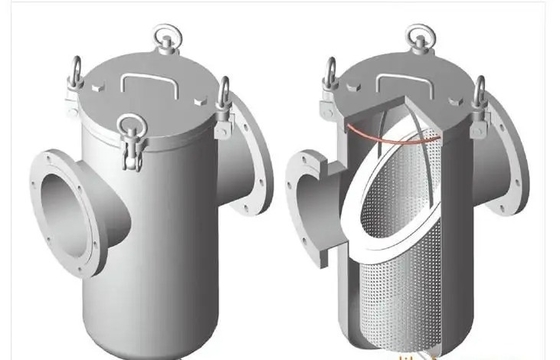

Basket filters are used on oil or other liquid pipelines to filter debris in the pipeline. The area of ​​the filter hole is 2-3 times larger than the area of ​​the orifice pipe, far exceeding the filtering area of ​​the Y-type and T-type filters. The structure of the filter screen is different from other filter screens. Because it is shaped like a basket, it is called a basket filter. The basket filter is mainly composed of a nozzle, a cylinder, a filter basket, a flange, a flange cover and fasteners. It can be installed on the pipeline to remove the larger solid impurities in the fluid, so that the machinery and equipment (including compressors, pumps, etc.) and instruments can work and operate normally, so as to stabilize the process and ensure safe production.

The blue filter is a small device that removes a small amount of solid particles in the liquid, which can protect the normal operation of compressors, pumps, instruments and others. The filtrate of the filter is discharged from the outlet of the filter. When cleaning is required, just take out the detachable filter bucket and reload it after processing. Therefore, it is extremely convenient to use and maintain. At present, it has been widely used in petroleum, chemical, pharmaceutical, food, environmental protection and other industries. If they are installed in series at the inlet of the pump or other parts of the system pipeline, it can not only prolong the service life of the pump and other equipment, but also ensure the safety of the entire system.



Specification

Model Cartridge QTY Max.Flow 40 inch,t/h Working pressure Filtering precision Inlet/Outlet Dia
YWDTL-1 1 30 0.1-0.5Mpa 0.1-100um DN80
YWDTL-2 2 60 0.1-0.5Mpa 0.1-100um DN80
YWDTL-3 3 90 0.1-0.5Mpa 0.1-100um DN100
YWDTL-4 4 120 0.1-0.5Mpa 0.1-100um DN150
YWDTL-5 5 150 0.1-0.5Mpa 0.1-100um DN200





Vertical High Flow Filter Housing 3 Inch  2 Inch Stainless Steel Strainer Basket Industrial 0
