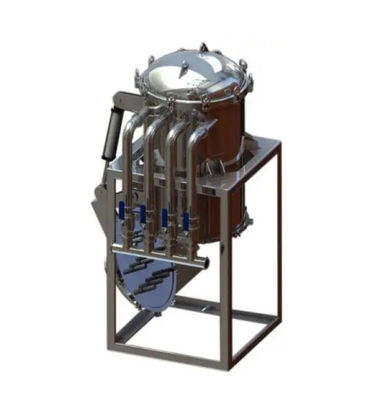

Vertical Candle Type Filter Pharmaceutical Industry Automatic Ss304

Basic Information
Place of Origin: China
Brand Name: Yuwei
Certification: IOS/CE
Model Number: YWZS
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: bubble wrap/wooden case
Delivery Time: 20-25 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 units per month
Detail Information
Name: Candle Filter Material: Ss316L
Discharge: Back Flow Control: PLC
Filter Area: 3 M2 Precision: 1 Um
Inlet/Outlet: DN80 Housing Surface: Sand Blast/Polish
Pressure: 0.4 -0.8 Mpa Work Temperture: 80degree
High Light:

vertical Candle type Filter

,

Candle type Filter Pharmaceutical

,

vertical Candle Filter Ss304


Product Description

Automatic Ss304 Candle Filters For Pharmaceutical Industry

Candle filter is a relatively advanced, safe, efficient and pollution-free new filtering method. Candle filter has the characteristics of high efficiency and energy saving, sealing and high precision, simple maintenance, safety and reliability and high degree of automation. It can be widely used in solid-liquid separation and filtration in petroleum, plastics, electroplating, chemical industry, ceramics, pharmaceutical, sugar and other industries.



Working principle of candle filter:



1. Feed:

Open the vent valve and pump the feed liquid into the filter.



2. Formation of filter cake layer:

Circulating filtration to make the filter cake layer reach a certain thickness.



3. Filtering:

The filtrate becomes clear and flows by the flow; Liquid level; Time; Pressure to determine the next link.



4. Drainage:

(1) Press the filtrate back to the raw material tank. (2) The residual liquid is sent to the top of the filter for atomization and spraying, allowing the gas to take away and the liquid to be dried. (3) Dry from the bottom drying area. (4) If the process requires the discharge of concentrated slurry, the concentrated slurry shall be discharged after reaching a certain concentration.



5. Washing:

Add the clear liquid and spray it to take away the water from the gas, so that the filter cake washing can save water.



6. Drying:

The washed filter cake is dried by adding appropriate gas to minimize the moisture of the filter cake. Generally, air, nitrogen or steam are used to take away the moisture in the filter cake.



Applicable industries:



Food industry: fructose syrup filtration; Decarburization, decolorization and filtration of citric acid, malic acid, sulfuric acid and lactic acid; Lycopene filtration; Decarburization, decolorization and filtration of monosodium glutamate; Yeast and soybean protein filtration; Filtration of various fruit juices; Soy sauce and vinegar filtration; Liquor and beverage filtration; Filtration of crude oil, edible oil and blended oil.

Pharmaceutical industry: biopharmaceutical industry; Fermentation Broth Filtration and crystal filtration; Mother liquor or suspension filtration; Catalyst filtration and recovery



Model Cartridge QTY Cartridge Size(mm) Filtering Area(㎡) Capacity(t/h) Housing Volume(L) Inlet(DN)

Cake Discharging Outlet



(DN)

Housing Diameter(mm) Total Height(mm) Height of Housing(mm) Height of Waste Discharging Oulet(mm) Dimension(mm)
YWZS-1 7 90*500 1 2.2 140 25 150 456*3 1902 1448 500 φ1000
YWZS-1.5 10 90*500 1.5 3.3 180 25 200 508*4 1928 1474 500 φ1000
YWZS-2 7 90*1000 2 4.4 220 32 150 456*3 2402 1948 500 φ1200
YWZS-3 10 90*1000 3 6.6 280 40 200 508*4 2428 1974 500 φ1200
YWZS-4 14 90*1000 4 8.8 400 40 200 608*4 2502 1868 500 φ1300
YWZS-6 19 90*1000 6 13.2 560 50 250 708*5 2578 1944 500 φ1400
YWZS-8 24 90*1000 8 18 740 65 250 808*5 2644 2010 500 φ1500
YWZS-12 40 90*1000 12 26 1200 65 300 1010*5 2854 2120 600 1300*1440
YWZS-18 64 90*1000 18 40 1800 80 400 1212*6 2904 2170 600 1440*1540
YWZS-30 106 90*1000 30 66 3000 100 500 1616*8 3440 2840 600 1800*1940
YWZS-40 140 90*1000 40 88 3815 150 500 1820*10 3560 2960 600 2000*2140
YWZS-60 190 90*1000 60 132 5700 150 500 2220*10 3700 3100 600 2440*2540





• Fully closed filtration. No leakage. No any environmental pollution.
• The entire process can be fully automated.
• The filter cake can be washed and dried to obtain maximum economic benefit.
• The filter element is designed to be the duplex structure.
• It has a wide applications and better filtering effects.
• It is the gas blowback slagging. The slag can be discharged quickly and cleanly.
• It is suitable for a variety of sticky materials.



Vertical Candle Type Filter Pharmaceutical Industry Automatic Ss304 0
