Product Details:
|
| Product Name: | Small SS Filter Press | Material: | 304/316L |
|---|---|---|---|
| Feed Pressure: | 0.6 MPa | Type: | Fame And Plate |
| Plate Material: | SS316/304 | Filter Precision: | 0.22/0.45 Micron |
| Plate Shifting: | Manual | Contorl Method: | PLC |
| Beam: | SS304/316 | Close Method: | Mechanical |
| High Light: | Stainless Steel Wine Filter Press,Wine Filter Press for Juice,Juice plate and frame filter presses |
||

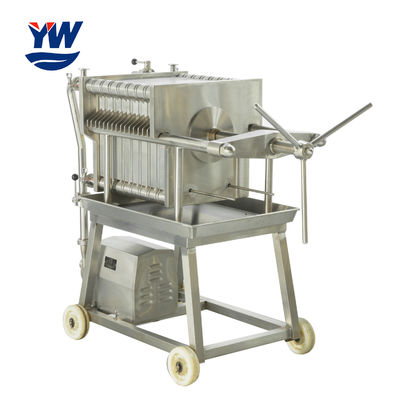

Stainless Steel Wine Oil Filter Press for Juice
Model: FP-300 stainless filter press (304 stainless steel)
Layer: 10 PCS
Filtering area: 0.700m2
Filter plate size: 300mm
Filter membrane hole dia: 0.8um
Filter pressure: 0.2mpa
Water flow capacity: 4T/H
Power: 0.55kw
Size: 700x500x800mm
| Model | Filter press | Plate size | Cake thickness | Filter chamber volume | Plate NO | Filtration pressure | Motor power | Weight | Dimensions L*W*H(mm) | Foundation Size(mm) | ||||
| L | B | D | H | |||||||||||
| X_M^AG30/870−U_K^B | 30 | 870*870 | ≤35 | 498 | 23 | ≥0.8 | 2.2 | 3046 | 3880*1250*1300 | 2920 | 700 | 1270 | 785 | |
| X_M^AG40/870−U_K^B | 40 | 623 | 29 | 3593 | 4270*1250*1300 | 3300 | ||||||||
| X_M^AG50/870−U_K^B | 50 | 789 | 37 | 4057 | 4790*1250*1300 | 3820 | ||||||||
| X_M^AG60/870−U_K^B | 60 | 955 | 45 | 4597 | 5310*1250*1300 | 4340 | ||||||||
| X_M^AG70/870−U_K^B | 70 | 1121 | 53 | 5136 | 5830*1250*1300 | 4860 | ||||||||
| X_M^AG80/870−U_K^B | 80 | 1287 | 61 | 5636 | 6350*1250*1300 | 5380 | ||||||||
| X_M^AG50/1000−U_K^B | 50 | 1000*1000 | 776 | 27 | 4 | 4352 | 4270*1500*1400 | 3350 | 780 | 1400 | 870 | |||
| X_M^AG60/1000−U_K^B | 60 | 943 | 33 | 4480 | 4700*1500*1400 | 3780 | ||||||||
| X_M^AG70/1000−U_K^B | 70 | 1109 | 39 | 5263 | 5130*1500*1400 | 4210 | ||||||||
| X_M^AG80/1000−U_K^B | 80 | 1275 | 45 | 5719 | 5560*1500*1400 | 4640 | ||||||||
| X_M^AG100/1000−U_K^B | 100 | 1608 | 57 | 6555 | 6410*1500*1400 | 5490 | ||||||||
| X_M^AG120/1000−U_K^B | 120 | 1941 | 69 | 7466 | 7260*1500*1400 | 6340 | ||||||||
| X_M^AG80/1250−U_K^B | 80 | 1250*1250 | ≤40 | 1560 | 29 | 5.5 | 10900 | 4830*1800*1600 | 3960 | 850 | 1740 | 995 | ||
| X_M^AG100/1250−U_K^B | 100 | 1975 | 37 | 11750 | 5440*1800*1600 | 4570 | ||||||||
| X_M^AG120/1250−U_K^B | 120 | 2391 | 45 | 12600 | 6060*1800*1600 | 5180 | ||||||||
| X_M^AG150/1250−U_K^B | 150 | 2911 | 55 | 13620 | 6820*1800*1600 | 5950 | ||||||||
| X_M^AG160/1250−U_K^B | 160 | 3119 | 59 | 14470 | 7130*1800*1600 | 6255 | ||||||||
| X_M^AG200/1250−U_K^B | 200 | 3847 | 73 | 15320 | 8200*1800*1600 | 7325 | ||||||||
| X_M^AG240/1250−U_K^B | 240 | 4679 | 89 | 16170 | 9420*1800*1600 | 8550 | ||||||||
| X_M^AG250/1250−U_K^B | 250 | 4783 | 91 | 17020 | 9570*1800*1600 | 8700 | ||||||||
| X_M^AG200/1500−U_K^B | 200 | 1500*1500 | 3809 | 49 | 11 | 26120 | 7140*2200*1820 | 5870 | 1170 | 1990 | 1070 | |||
| X_M^AG250/1500−U_K^B | 250 | 4723 | 61 | 26930 | 7730*2200*1820 | 6860 | ||||||||
| X_M^AG300/1500−U_K^B | 300 | 5637 | 73 | 28160 | 8720*2200*1820 | 7850 | ||||||||
| X_M^AG350/1500−U_K^B | 350 | 6551 | 85 | 29600 | 10110*2200*1820 | 9090 | ||||||||
| X_M^AG400/1500−U_K^B | 400 | 7618 | 99 | 31500 | 11260*2200*1820 | 10240 | ||||||||
| X_M^AG450/1500−U_K^B | 450 | 8532 | 111 | 33400 | 12250*2200*1820 | 11230 | ||||||||
| X_M^AG500/1500−U_K^B | 500 | 9446 | 123 | 33380 | 13240*2200*1820 | 12220 | ||||||||
| X_M^AG600/2000−U_K^B | 600 | 2000*2000 | 11901 | 85 | 15 | 54164 | 13030*3000*2500 | 10610 | 1660 | 2000 | 1050 | |||
| X_M^AG700/2000−U_K^B | 700 | 13838 | 99 | 58300 | 14390*3000*2500 | 11920 | ||||||||
| X_M^AG800/2000−U_K^B | 800 | 14945 | 107 | 62460 | 15770*3000*2500 | 13240 | ||||||||
| X_M^AG900/2000−U_K^B | 900 | 17713 | 127 | 66620 | 17150*3000*2500 | 14560 | ||||||||
| X_M^AG1000/2000−U_K^B | 1000 | 19651 | 141 | 70780 | 18530*3000*2500 | 15880 | ||||||||
