Product Details:
|
| Product Name: | Small SS Filter Press | Material: | 304/316L |
|---|---|---|---|
| Feed Pressure: | 0.6 MPa | Type: | Fame And Plate |
| Plate Material: | SS316/304 | Filter Precision: | 0.22/0.45 Micron |
| Plate Shifting: | Manual | Contorl Method: | PLC |
| Beam: | SS304/316 | Close Method: | Mechanical |
| High Light: | Pharmacy Stainless Steel Filter Press,Stainless Steel Filter Press Small,Pharmacy small size filter press |
||
Stainless Steel Filter Press for Wisky|Hot Sale Industrial Filter Press for Soya Sauce|Filter Press for Wine

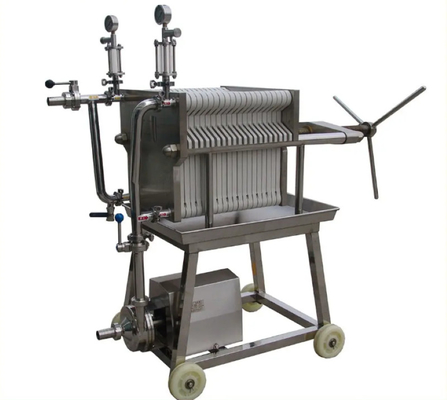

The stainless steel plate and frame filter press is a product which can adopt different filter media and can realize coarse filtration, precision filtration and ultrafiltration.
With ultrafilter medium, it can attain the goal of clarification and desterilization. The whole machine is made of stainless steel(304 316 or 316L), and the seal gaskets adopt silicon rubber, so the machine features acid and alkali corrosion resistance, non-toxicness and high temperature resistance, good sealing performance and long service life. It has a novel construction, nice appearance, flexible movement, convenient operation and wear well.
| Model | Filter press | Plate size | Cake thickness | Filter chamber volume | Plate NO | Filtration pressure | Motor power | Weight | Dimensions L*W*H(mm) | Foundation Size(mm) | ||||
| L | B | D | H | |||||||||||
| X_M^AG30/870−U_K^B | 30 | 870*870 | ≤35 | 498 | 23 | ≥0.8 | 2.2 | 3046 | 3880*1250*1300 | 2920 | 700 | 1270 | 785 | |
| X_M^AG40/870−U_K^B | 40 | 623 | 29 | 3593 | 4270*1250*1300 | 3300 | ||||||||
| X_M^AG50/870−U_K^B | 50 | 789 | 37 | 4057 | 4790*1250*1300 | 3820 | ||||||||
| X_M^AG60/870−U_K^B | 60 | 955 | 45 | 4597 | 5310*1250*1300 | 4340 | ||||||||
| X_M^AG70/870−U_K^B | 70 | 1121 | 53 | 5136 | 5830*1250*1300 | 4860 | ||||||||
| X_M^AG80/870−U_K^B | 80 | 1287 | 61 | 5636 | 6350*1250*1300 | 5380 | ||||||||
| X_M^AG50/1000−U_K^B | 50 | 1000*1000 | 776 | 27 | 4 | 4352 | 4270*1500*1400 | 3350 | 780 | 1400 | 870 | |||
| X_M^AG60/1000−U_K^B | 60 | 943 | 33 | 4480 | 4700*1500*1400 | 3780 | ||||||||
| X_M^AG70/1000−U_K^B | 70 | 1109 | 39 | 5263 | 5130*1500*1400 | 4210 | ||||||||
| X_M^AG80/1000−U_K^B | 80 | 1275 | 45 | 5719 | 5560*1500*1400 | 4640 | ||||||||
| X_M^AG100/1000−U_K^B | 100 | 1608 | 57 | 6555 | 6410*1500*1400 | 5490 | ||||||||
| X_M^AG120/1000−U_K^B | 120 | 1941 | 69 | 7466 | 7260*1500*1400 | 6340 | ||||||||
| X_M^AG80/1250−U_K^B | 80 | 1250*1250 | ≤40 | 1560 | 29 | 5.5 | 10900 | 4830*1800*1600 | 3960 | 850 | 1740 | 995 | ||
| X_M^AG100/1250−U_K^B | 100 | 1975 | 37 | 11750 | 5440*1800*1600 | 4570 | ||||||||
| X_M^AG120/1250−U_K^B | 120 | 2391 | 45 | 12600 | 6060*1800*1600 | 5180 | ||||||||
| X_M^AG150/1250−U_K^B | 150 | 2911 | 55 | 13620 | 6820*1800*1600 | 5950 | ||||||||
| X_M^AG160/1250−U_K^B | 160 | 3119 | 59 | 14470 | 7130*1800*1600 | 6255 | ||||||||
| X_M^AG200/1250−U_K^B | 200 | 3847 | 73 | 15320 | 8200*1800*1600 | 7325 | ||||||||
| X_M^AG240/1250−U_K^B | 240 | 4679 | 89 | 16170 | 9420*1800*1600 | 8550 | ||||||||
| X_M^AG250/1250−U_K^B | 250 | 4783 | 91 | 17020 | 9570*1800*1600 | 8700 | ||||||||
| X_M^AG200/1500−U_K^B | 200 | 1500*1500 | 3809 | 49 | 11 | 26120 | 7140*2200*1820 | 5870 | 1170 | 1990 | 1070 | |||
| X_M^AG250/1500−U_K^B | 250 | 4723 | 61 | 26930 | 7730*2200*1820 | 6860 | ||||||||
| X_M^AG300/1500−U_K^B | 300 | 5637 | 73 | 28160 | 8720*2200*1820 | 7850 | ||||||||
| X_M^AG350/1500−U_K^B | 350 | 6551 | 85 | 29600 | 10110*2200*1820 | 9090 | ||||||||
| X_M^AG400/1500−U_K^B | 400 | 7618 | 99 | 31500 | 11260*2200*1820 | 10240 | ||||||||
| X_M^AG450/1500−U_K^B | 450 | 8532 | 111 | 33400 | 12250*2200*1820 | 11230 | ||||||||
| X_M^AG500/1500−U_K^B | 500 | 9446 | 123 | 33380 | 13240*2200*1820 | 12220 | ||||||||
| X_M^AG600/2000−U_K^B | 600 | 2000*2000 | 11901 | 85 | 15 | 54164 | 13030*3000*2500 | 10610 | 1660 | 2000 | 1050 | |||
| X_M^AG700/2000−U_K^B | 700 | 13838 | 99 | 58300 | 14390*3000*2500 | 11920 | ||||||||
| X_M^AG800/2000−U_K^B | 800 | 14945 | 107 | 62460 | 15770*3000*2500 | 13240 | ||||||||
| X_M^AG900/2000−U_K^B | 900 | 17713 | 127 | 66620 | 17150*3000*2500 | 14560 | ||||||||
| X_M^AG1000/2000−U_K^B | 1000 | 19651 | 141 | 70780 | 18530*3000*2500 | 15880 | ||||||||
