Product Details:
|
| Warranty: | 1 Years | Material: | SS304 |
|---|---|---|---|
| Inlet/Outlet: | DN25-20 | Power: | 0.25kw |
| Application: | Medical/Food/Industry | Voltage: | 220V |
| Certification: | ISO9001 | Working Temperature: | 90 ℃ |
| High Light: | 316 ss centrifugal pump,ss centrifugal pump corrosion resistant,ss 316 centrifugal pumps |
||

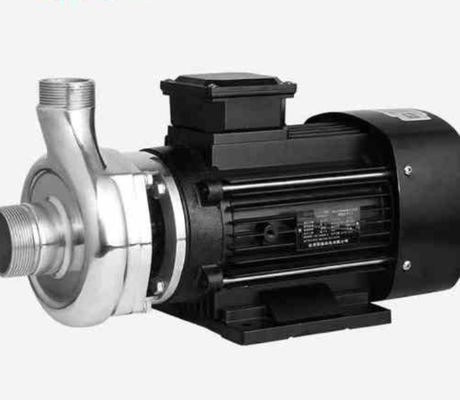

SS304 centrifugal pump corrosion-resistant acid-base circulating sewage pump sewage pump
SS304 centrifugal corrosion-resistant micro electric pump is a stainless steel corrosion-resistant centrifugal micro centrifugal pump. The impeller of the pump adopts semi open structure. Because the product integrates excellent structure, performance and shape, and the overflow parts and connecting frame are made of high-quality stainless steel.
Specification
| Model | Flow(m³/h) | Lift(m) | Power(kw) | Voltage(V) | Inlet/Outlet dia(mm) |
| WBS3-8 | 3 | 8 | 0.25 | 220/380 | 25-20 |
| WBS3-10 | 3 | 10 | 0.37 | 220/380 | 25-20 |
| WBS6-18 | 6 | 18 | 0.55 | 220/380 | 45-20 |
| WBS8-18 | 8 | 18 | 0.75 | 220/380 | 45-20 |
| WBS10-18 | 13 | 18 | 1.1 | 220/380 | 50-40 |
| WBS10-20 | 13 | 20 | 1.5 | 380 | 50-40 |
| WBS13.5-22 | 13.5 | 22 | 2.2 | 380 | 50-40 |
| WBS15-22 | 15 | 22 | 3 | 380 | 50-40 |
Main features of stainless steel centrifugal pump
1. Stable operation: the absolute concentricity of the pump shaft and the excellent dynamic and static balance of the impeller ensure smooth operation without vibration.
2. The noise of the two bearings is low, except that the noise of the two bearings is low.
3. Low failure rate: the structure is simple and reasonable, the key parts are equipped with world-class quality, and the fault-free working time of the whole machine is greatly improved.
