Fully Automatic Self Cleaning Filters For Irrigation System Liquids Strainer SS304/316L

Basic Information
Place of Origin: China
Brand Name: Yuwei
Certification: CE,ISO
Model Number: YWQX-2
Minimum Order Quantity: 1
Price: USD+1000-20000+set
Packaging Details: wooden case
Delivery Time: 8-15 work days
Payment Terms: T/T
Supply Ability: 500+set+per month
Detail Information
Product Name: Self-Cleaning Filter Housing Material: SS304/SS316L
Filtration Precision: 50-2000um Voltage: Customized
Diameter Of Sweage Discharge: DN50-600 Filter Area: 1367cm²
Capacity: 50-2000 T / H Total Height: 1100-2650 Mm
Housing Surface: Sandblasting Power: 5.5kw
High Light:

automatic self cleaning strainer

,

self cleaning filter for liquids

,

automatic cleaning filter


Product Description

Yuwei Fully Automatic SS304/316L Self-Cleaning Filter For Well Water Treatment​



Self-cleaning filter is a kind of filter that directly intercepts impurities in water, removes suspended solids and particulate matter in water body, reduces turbidity, purifies water quality, reduces system fouling, algae, rust, etc., to purify water quality and protect other equipment in the system from normal. The working precision equipment, the water enters the self-cleaning filter body from the water inlet, due to the intelligent (PLC, PAC) design, the system can automatically identify the degree of impurity deposition, and automatically discharge the sewage to the sewage valve signal.



The principle that backwashing can be carried out automatically: As mentioned earlier, backwashing is realized by the opening of the hydraulic valve and the action of the hydraulic cylinder piston, and these are controlled by the backwashing controller. The backwash controller can accurately control the hydraulic valve and hydraulic cylinder according to the pressure difference from the inlet and outlet of the filter, and the power of the controller comes from the pressure of the pipeline itself.



Features of self-cleaning filter: Uninterrupted water supply during backwashing, and the entire backwashing is realized by cleaning every point of the suction nozzle. During backwashing, only a small local pressure changes between the suction nozzle and the fine filter, and the action of the collector and the hydraulic cylinder does not affect the normal water supply. At the same time, the amount of water consumed during backwashing is very small, and the flow rate is 300m3/h. Take the filter as an example: the backwash flow is 35-40m3/h, the backwash time is 7-15 seconds, and the backwash water volume is 80-160L



Specification

Model Inlet/Outlet(DN) Weight(Kg) Filtering Area(cm2) Total Height(mm) Capacity(t/h)
YWQX-2 50 56 710 1400 19
YWQX-3 80 87 1165 1650 45
YWQX-4 100 106 1367 1450 65
YWQX-5 125 132 2095 2100 105
YWQX-6 150 197 3014 2150 150
YWQX-8 200 248 5270 2300 265
YWQX-10 250 360 7867 2450 410
YWQX-12 300 486 11414 2500 590
YWQX-14 350 653 15552 3200 800
YWQX-16 400 765 20344 3300 1050
YWQX-18 450 814 25751 3380 1320
YWQX-20 500 920 31786 3450 1630
YWQX-24 600 1038 42295 3600 2350

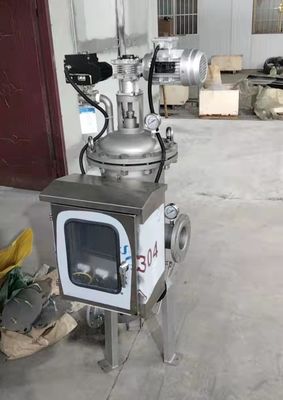

Fully Automatic Self Cleaning Filters For Irrigation System Liquids Strainer SS304/316L 0
