10 Micron 50 Micron Auto Self Cleaning Well Water Filter High Flow Rate

Basic Information
Place of Origin: Yuzhou city, Henan province China
Brand Name: Yuwei
Certification: CE,ISO
Model Number: YWQX-2
Minimum Order Quantity: 1
Price: USD+1000-20000+set
Packaging Details: wooden case
Delivery Time: 8-15 work days
Payment Terms: T/T
Supply Ability: 500+set+per month
Detail Information
Product Name: Self-Cleaning Filter Housing Material: SS304/SS316L
Filtration Precision: 50-100um Voltage: Customized
Diameter Of Sweage Discharge: DN50-600 Filter Area: 1367cm²
Capacity: 50-2000 T / H Total Height: 1100-2650 Mm
Weight: 87kg Power: 4.5kw
High Light:

auto cleaning water filter

,

50 micron self cleaning filter

,

10 micron self cleaning filter


Product Description

Yuwei High Flow Rate Self-Cleaning Filter For Well Water Treatment with 50-100 micron



Self-cleaning filter is a widely used equipment in the water treatment industry. Its simple design and good performance enable sewage to achieve the best filtering effect. The main components are: motor, electric control box, control pipeline, main pipe assembly, filter element assembly, 316L stainless steel brush, frame assembly, drive shaft, inlet and outlet connection flanges, etc. The self-cleaning filter overcomes many shortcomings of traditional filtration products, such as small dirt holding capacity, easy to be blocked by dirt, the filter part needs to be disassembled and cleaned, and the filter status cannot be monitored. It has the function of filtering raw water and automatically cleaning and discharging the filter element. In addition, the system provides uninterrupted water supply when cleaning and discharging sewage, which can monitor the working state of the filter and has a high degree of automation. It covers the needs of various filtration precisions from 10um to 3000um.



Self-cleaning filter, operation and control can automatically clean and filter without any external energy, and automatically discharge sewage.



Continuous flow during backwashing, the cleaning and filtration cycle can be adjusted, the default self-cleaning filtration time is 10-60/s, the water loss in cleaning and filtration only accounts for 0.08-0.6% of the filtered water; the filtration accuracy can reach 10-3000 microns; the working pressure can be Up to 1.0-1.6Mpa; flow per unit: 4-4160m³/h. It can be installed vertically, horizontally, or upside down in any direction and in any position. It can be used for water filtration in various industries such as industry, agriculture, municipal power, electronics, medicine, food, printing and dyeing, construction, steel, metallurgy, and papermaking.



The self-cleaning filter is a kind of precision equipment that uses the filter screen to directly intercept impurities, floating objects, particles, etc. in the liquid, while reducing the turbidity of the water, reducing the dirt, and ensuring the normal operation and service life of the equipment behind it. The characteristics of sewage [1].



Specification

Model Inlet/Outlet(DN) Weight(Kg) Filtering Area(cm2) Total Height(mm) Capacity(t/h)
YWQX-2 50 56 710 1400 19
YWQX-3 80 87 1165 1650 45
YWQX-4 100 106 1367 1450 65
YWQX-5 125 132 2095 2100 105
YWQX-6 150 197 3014 2150 150
YWQX-8 200 248 5270 2300 265
YWQX-10 250 360 7867 2450 410
YWQX-12 300 486 11414 2500 590
YWQX-14 350 653 15552 3200 800
YWQX-16 400 765 20344 3300 1050
YWQX-18 450 814 25751 3380 1320
YWQX-20 500 920 31786 3450 1630
YWQX-24 600 1038 42295 3600 2350

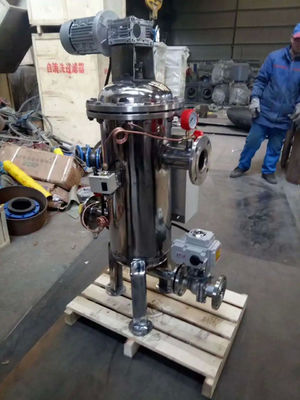

10 Micron 50 Micron Auto Self Cleaning Well Water Filter High Flow Rate 0
