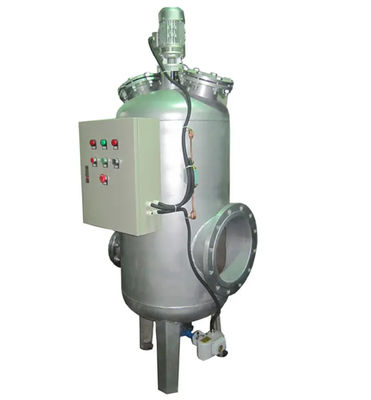

100-200um Self Cleaning Filters For Water Filtration System For Print Paper Industry

Basic Information
Place of Origin: Yuzhou city, Henan province China
Brand Name: Yuwei
Certification: CE,ISO
Model Number: YWQX-2
Minimum Order Quantity: 1
Price: USD+1000-20000+set
Packaging Details: wooden case
Delivery Time: 5-8 work days
Payment Terms: T/T
Supply Ability: 500+set+per month
Detail Information
Product Name: Self-Cleaning Filter Control Time: 10-200S
Filtration Precision: 50um Voltage: Customized
Diameter Of Sweage Discharge: DN50-600 Filter Area: 1165cm²
Capacity: 25t / H Total Height: 2100mm
Weight: 106kg Color: Gray
High Light:

100-200um self cleaning filter

,

self cleaning water filtration system

,

self cleaning type filter


Product Description

Control Time 10-200S self-cleaning filter for sewage Water





Introduction


Screen type self cleaning water filter, with inside water motor and piston drive
by water pressure in the line. Solenoid valve can be 5-9V DC plus battery power
LCD to archieve no power needed set. Suits for opensite no electric power supply
area.
It can also using brush or motor drived sunk cleaning component for high efficient water
filtration.

Specification

Model Inlet/Outlet(DN) Weight(Kg) Filtering Area(cm2) Total Height(mm) Capacity(t/h)
YWQX-2 50 56 710 1400 19
YWQX-3 80 87 1165 1650 45
YWQX-4 100 106 1367 1450 65
YWQX-5 125 132 2095 2100 105
YWQX-6 150 197 3014 2150 150
YWQX-8 200 248 5270 2300 265
YWQX-10 250 360 7867 2450 410
YWQX-12 300 486 11414 2500 590
YWQX-14 350 653 15552 3200 800
YWQX-16 400 765 20344 3300 1050
YWQX-18 450 814 25751 3380 1320
YWQX-20 500 920 31786 3450 1630
YWQX-24 600 1038 42295 3600 2350
