| Place of Origin: | China |
|---|---|
| Brand Name: | Yuwei |
| Certification: | CE / ISO |
| Model Number: | YWGMZ |
| Minimum Order Quantity: | 1 unit |
| Price: | Negotiable |
| Packaging Details: | wooden case, bubble wrap |
| Delivery Time: | 10-20 work days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 units per month |
| Name: | Membrane Filter Press | Material: | Carbon Steel |
|---|---|---|---|
| Feed Pressure: | 0.6 MPa | Squeezing Pressure: | 1.8 Mpa |
| Plate Material: | PP | Power: | 4.8 Kw |
| Plate Shifting: | Auto | Contorl: | PLC |
| Colour: | Blue/White/Grey | Close Method: | Hydralic |
| High Light: | Membrane mobile filter press,mobile filter press on truck 4.8Kw,sludge dewatering system filter press |
||

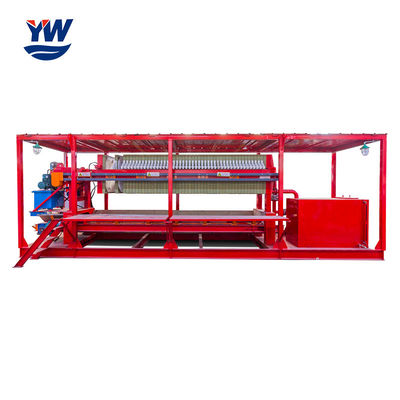

Yuwei Corrosion Resistant Membrane Filter Press For Strong Acid And Alkali
1. The mobile filter press adopts good Australian technology and has a beautiful appearance.
2. High structural rigidity, stable operation and low noise.
3. The configured concentration pretreatment equipment (good for sludge flocculation) has low operating cost.
4. The distributor configured in the gravity dewatering area makes the material evenly distributed and prolongs the life of the filter belt.
5. With super long gravity dehydration zone and wedge-shaped dehydration zone, the material is fully dehydrated to ensure that the material will not overflow in the pressing zone.
6. The arrangement of rollers is scientific and orderly. Gravity dehydration, wedge dehydration and press dehydration are discharged separately without interfering with each other. The ratio of the diameter of the press dehydration roller is large and the dehydration effect is good. Therefore, the production capacity is large, energy saving and high efficiency.
7. The continuous operation from feeding to discharging mud cake has a high degree of automation, and a PLC interface can be set up according to needs, which is convenient for centralized control by microcomputer.
8. The power transmission mechanism adopts mechanical or frequency conversion stepless speed regulation, which has a large speed regulation range and wide adaptability.
9. The filter belt is equipped with a reliable backwashing device to ensure the dehydration effect of the filter belt.
10. Pneumatic tensioning and pneumatic automatic deviation correction device are adopted to ensure the safe and normal operation of the filter belt.
11. The operation is safe and reliable, using infrared safety protection and all-round emergency safety parking device.
12. Filter belts with different structures can be configured according to different materials with high filtration accuracy.
Scope of application
Membrane filter press is used for solid-liquid separation of various suspensions, and has a wide range of applications. It is suitable for industrial fields such as medicine, food, chemical industry, environmental protection, and water treatment.
| Model | Filter press | Plate size | Cake thickness | Filter chamber volume | Plate NO | Filtration pressure | Motor power | Weight | Dimensions L*W*H(mm) | Foundation Size(mm) | ||||
| L | B | D | H | |||||||||||
| X_M^AG30/870−U_K^B | 30 | 870*870 | ≤35 | 498 | 23 | ≥0.8 | 2.2 | 3046 | 3880*1250*1300 | 2920 | 700 | 1270 | 785 | |
| X_M^AG40/870−U_K^B | 40 | 623 | 29 | 3593 | 4270*1250*1300 | 3300 | ||||||||
| X_M^AG50/870−U_K^B | 50 | 789 | 37 | 4057 | 4790*1250*1300 | 3820 | ||||||||
| X_M^AG60/870−U_K^B | 60 | 955 | 45 | 4597 | 5310*1250*1300 | 4340 | ||||||||
| X_M^AG70/870−U_K^B | 70 | 1121 | 53 | 5136 | 5830*1250*1300 | 4860 | ||||||||
| X_M^AG80/870−U_K^B | 80 | 1287 | 61 | 5636 | 6350*1250*1300 | 5380 | ||||||||
| X_M^AG50/1000−U_K^B | 50 | 1000*1000 | 776 | 27 | 4 | 4352 | 4270*1500*1400 | 3350 | 780 | 1400 | 870 | |||
| X_M^AG60/1000−U_K^B | 60 | 943 | 33 | 4480 | 4700*1500*1400 | 3780 | ||||||||
| X_M^AG70/1000−U_K^B | 70 | 1109 | 39 | 5263 | 5130*1500*1400 | 4210 | ||||||||
| X_M^AG80/1000−U_K^B | 80 | 1275 | 45 | 5719 | 5560*1500*1400 | 4640 | ||||||||
| X_M^AG100/1000−U_K^B | 100 | 1608 | 57 | 6555 | 6410*1500*1400 | 5490 | ||||||||
| X_M^AG120/1000−U_K^B | 120 | 1941 | 69 | 7466 | 7260*1500*1400 | 6340 | ||||||||
| X_M^AG80/1250−U_K^B | 80 | 1250*1250 | ≤40 | 1560 | 29 | 5.5 | 10900 | 4830*1800*1600 | 3960 | 850 | 1740 | 995 | ||
| X_M^AG100/1250−U_K^B | 100 | 1975 | 37 | 11750 | 5440*1800*1600 | 4570 | ||||||||
| X_M^AG120/1250−U_K^B | 120 | 2391 | 45 | 12600 | 6060*1800*1600 | 5180 | ||||||||
| X_M^AG150/1250−U_K^B | 150 | 2911 | 55 | 13620 | 6820*1800*1600 | 5950 | ||||||||
| X_M^AG160/1250−U_K^B | 160 | 3119 | 59 | 14470 | 7130*1800*1600 | 6255 | ||||||||
| X_M^AG200/1250−U_K^B | 200 | 3847 | 73 | 15320 | 8200*1800*1600 | 7325 | ||||||||
| X_M^AG240/1250−U_K^B | 240 | 4679 | 89 | 16170 | 9420*1800*1600 | 8550 | ||||||||
| X_M^AG250/1250−U_K^B | 250 | 4783 | 91 | 17020 | 9570*1800*1600 | 8700 | ||||||||
| X_M^AG200/1500−U_K^B | 200 | 1500*1500 | 3809 | 49 | 11 | 26120 | 7140*2200*1820 | 5870 | 1170 | 1990 | 1070 | |||
| X_M^AG250/1500−U_K^B | 250 | 4723 | 61 | 26930 | 7730*2200*1820 | 6860 | ||||||||
| X_M^AG300/1500−U_K^B | 300 | 5637 | 73 | 28160 | 8720*2200*1820 | 7850 | ||||||||
| X_M^AG350/1500−U_K^B | 350 | 6551 | 85 | 29600 | 10110*2200*1820 | 9090 | ||||||||
| X_M^AG400/1500−U_K^B | 400 | 7618 | 99 | 31500 | 11260*2200*1820 | 10240 | ||||||||
| X_M^AG450/1500−U_K^B | 450 | 8532 | 111 | 33400 | 12250*2200*1820 | 11230 | ||||||||
| X_M^AG500/1500−U_K^B | 500 | 9446 | 123 | 33380 | 13240*2200*1820 | 12220 | ||||||||
| X_M^AG600/2000−U_K^B | 600 | 2000*2000 | 11901 | 85 | 15 | 54164 | 13030*3000*2500 | 10610 | 1660 | 2000 | 1050 | |||
| X_M^AG700/2000−U_K^B | 700 | 13838 | 99 | 58300 | 14390*3000*2500 | 11920 | ||||||||
| X_M^AG800/2000−U_K^B | 800 | 14945 | 107 | 62460 | 15770*3000*2500 | 13240 | ||||||||
| X_M^AG900/2000−U_K^B | 900 | 17713 | 127 | 66620 | 17150*3000*2500 | 14560 | ||||||||
| X_M^AG1000/2000−U_K^B | 1000 | 19651 | 141 | 70780 | 18530*3000*2500 | 15880 | ||||||||
Working principle
The suspension is pumped into each closed filter chamber of the filter machine. Under the action of the working pressure, the filtrate penetrates the filter membrane or other filter materials, and is discharged through the liquid outlet, and the filter residue remains in the frame to form a filter cake, so as to achieve Solid-liquid separation.
