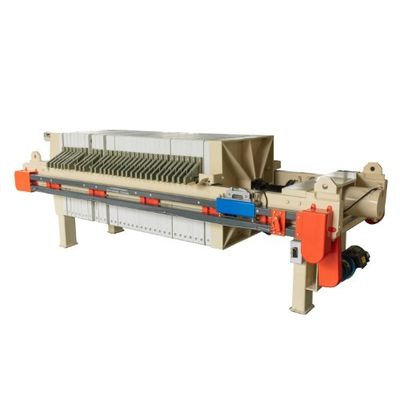

Auto Filter Press Chamber Plate Shifting

Basic Information
Place of Origin: China
Brand Name: Yuwei
Certification: CE / ISO
Model Number: YWXAZ
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Bubble Wrap/ Wooden Case
Delivery Time: 10-20 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 500 Unit per Month
Detail Information
Name: Chamber Filter Press Material: Carbon Steel
Plate Material: PP Plate Shifting: Auto
Working Pressure: 0.8 MPa Closing Pressure: 18 Mpa
Power: 380V/50HZ/3PHS Control: PLC
High Light:

Auto filter press chamber plate

,

filter press chamber plate Shifting

,

filter chamber design


Product Description

High Pressure Automatic Plate Shifting Filter Press For Sewadge Treatment



Using PLC control, it can perform various operations on the filter press (such as pressing the filter plate, merging and opening the liquid collecting plate, loosening the filter plate, and pulling the filter plate), and has a remote control interface, which can be automatically controlled remotely. . The Yuansheng control interface is also reserved, which can be automatically operated and controlled by Yuansheng. In addition, varicose rapping, liquid-contacting flaps, mud guiding and mud storage, and filter cloth washing systems can be provided as required.





Fully Automatic Chamber Filter Press Principle

The automatic filter press detects the current pressure of the hydraulic system of the pulling plate through the pressure transmitter, and converts the sensed pressure signal into an analog quantity that can be recognized by the PLC, so as to control the forward and backward of the pulling plate. The set photoelectric switch allows the pulling system to realize instant pause/resume during the pulling process or the whole system running process, making the operation process more user-friendly.





Model Filter Area Plate size Cake thickness Filter chamber volume Plate NO Filtration pressure Motor power Weight Dimensions L*W*H(mm) Foundation Size(mm)
L B D H
X_M^AZ30/870−30U_K^B 30 870*870 30 460 23 0.6 2.2 2680 3180*1400*1230 2360 700 1380 785
X_M^AZ40/870−30U_K^B 40 595 30 3050 3570*1400*1230 2750
X_M^AZ50/870−30U_K^B 50 748 38 3456 4110*1400*1230 3290
X_M^AZ60/870−30U_K^B 60 902 46 4003 4550*1400*1230 3730
X_M^AZ70/870−30U_K^B 70 1056 54 4584 4990*1400*1230 4170
X_M^AZ80/870−30U_K^B 80 1210 62 5082 5430*1400*1230 4610
X_M^AZ50/870−30U_K^B 50 1000*1000 30 736 28 ≥0.6 4 4128 4040*1500*1400 3120 780 1480 870
X_M^AZ60/870−30U_K^B 60 889 34 4636 4460*1500*1400 3480
X_M^AZ70/870−30U_K^B 70 1041 40 5143 4760*1500*1400 3840
X_M^AZ80/870−30U_K^B 80 1193 46 5651 5120*1500*1400 4200
X_M^AZ100/870−30U_K^B 100 1475 57 6628 5780*1500*1400 4860
X_M^AZ120/870−30U_K^B 120 1777 69 7644 6500*1500*1400 5580
X_M^AZ100/1250−30U_K^B 100 1250*1250 30 1468 36 ≥0.6 4 8307 5020*1800*1600 3970 850 1740 995
X_M^AZ120/1250−30U_K^B 120 1746 43 9308 5470*1800*1600 4430
X_M^AZ140/1250−30U_K^B 140 2063 51 10455 5990*1800*1600 4950
X_M^AZ160/1250−30U_K^B 160 2341 58 11492 6450*1800*1600 5400
X_M^AZ180/1250−30U_K^B 180 2619 65 12494 6905*1800*1600 5860
X_M^AZ200/1250−30U_K^B 200 2896 72 13504 7360*1800*1600 6310
X_M^AZ220/1250−30U_K^B 220 3214 80 14652 7880*1800*1600 6830
X_M^AZ250/1250−30U_K^B 250 3650 91 16227 8600*1800*1600 7550
X_M^AZ200/1500−35U_K^B 200 1500*1500 35 2998 49 ≥0.6 7.5 20030 6400*2200*1900 5250 1170 1990 1070
X_M^AZ250/1500−35U_K^B 250 3594 61 22978 7225*2200*1900 6090
X_M^AZ300/1500−35U_K^B 300 4347 74 26026 8130*2200*1900 6990
X_M^AZ350/1500−35U_K^B 350 5043 86 29220 8950*2200*1900 7840
X_M^AZ400/1500−35U_K^B 400 5796 99 32574 9880*2200*1900 8750
X_M^AZ450/1500−35U_K^B 450 6492 111 35586 10690*2200*1900 9590
X_M^AZ500/1500−35U_K^B 500 7187 123 38606 11560*2200*1900 10430
X_M^AZ600/2000−40U_K^B 600 2000*2000 40 8926 85 ≥0.6 15 49000 11100*3000*2500 9200 1660 2000 1050
X_M^AZ700/2000−40U_K^B 700 10380 99 53000 12200*3000*2500 10300
X_M^AZ800/2000−40U_K^B 800 11210 107 57000 13350*3000*2500 11450
X_M^AZ900/2000−40U_K^B 900 13290 127 61000 14500*3000*2500 12600
X_M^AZ1000/2000−40U_K^B 1000 14740 141 65000 15600*3000*2500 15600





Technical Features

  • Inverter motor pull plate;
  • Automatic control system: The control adopts three major brands, Omron, Siemens and Schneider products to realize automatic control of the whole process;
  • The hydraulic system runs smoothly and reliably: the hydraulic components are made of high-quality products; the integrated block is processed by the machining center; the fuel tank is produced by the manufacturing process;
  • The main beam adopts H-shaped box structure, which has good structure and anti-side bending, which completely solves the problem of bending of the main beam. Diaphragm pressing, which is as large as 25kg, reduces the moisture content of the filter cake after pressing to less than 20%; the thickness of the filter cake is 45mm , increasing the volume of the filter chamber and the processing capacity of a single unit.



Industry

It is widely used in the production process of various industrial industries such as chemical, petroleum, pharmaceutical, sugar, metallurgy, food, ceramics, starch, etc. and the purification of various industrial wastewater and domestic sewage.
