Stainless Steel Horizontal Single Stage Centrifugal Pump

Basic Information
Place of Origin: China
Brand Name: Yuwei
Certification: CE,ISO
Model Number: YWWBS
Minimum Order Quantity: 1
Price: USD+500-8000+set
Packaging Details: wooden case/carton
Delivery Time: 8 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 Unit per Month
Detail Information
Warranty: 1 Years Material: Ss304/ 316
Inlet/Outlet: 45-20 Power: 0.55kw
Application: Medical/Food/Industry And So On Voltage: Customized
Certification: ISO9001&CE Working Temperature: ≤90 ℃
After Sales Service: Video Support
High Light:

Horizontal single stage centrifugal pump

,

stainless steel Horizontal centrifugal pump

,

ss Horizontal centrifugal pump


Product Description

Light stainless steel Horizontal single-stage centrifugal pump for chemical industry





Light stainless steel Horizontal single-stage centrifugal pump is a stainless steel corrosion-resistant centrifugal micro centrifugal pump. The impeller of the pump adopts semi open structure. Because the product integrates excellent structure, performance and shape, and the overflow parts and connecting frame are made of high-quality stainless steel.



Specification



Model Flow(m³/h) Lift(m) Power(kw) Voltage(V) Inlet/Outlet dia(mm)
WBS3-8 3 8 0.25 220/380 25-20
WBS3-10 3 10 0.37 220/380 25-20
WBS6-18 6 18 0.55 220/380 45-20
WBS8-18 8 18 0.75 220/380 45-20
WBS10-18 13 18 1.1 220/380 50-40
WBS10-20 13 20 1.5 380 50-40
WBS13.5-22 13.5 22 2.2 380 50-40
WBS15-22 15 22 3 380 50-40





Main features of stainless steel centrifugal pump



1.No leakage: cemented carbide seals of different materials ensure no leakage in the transportation of different media.



2. The noise of the two bearings is low, except that the noise of the two bearings is low.



3. Convenient maintenance: easy and convenient to replace seals and bearings.

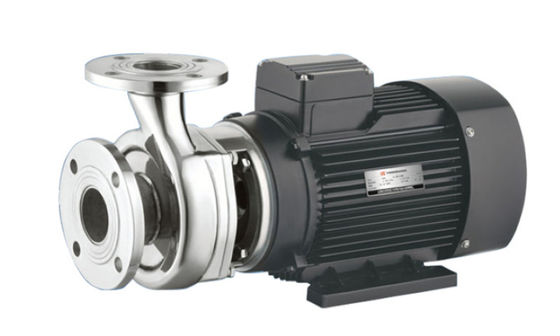

Stainless Steel Horizontal Single Stage Centrifugal Pump 0
